Description reviews

Voltage	24V DC
Brand	Deep Sea Electronics
Continuous Voltage Rating	8-35 V
Maximum Operating Current	85 mA at 12 V, 96 mA at 24 V
Frequency	3.5-75 Hz
Dimensions	140 mm x 113 mm x 43 mm (5.5" x 4.4" x 1.5")
Panel Cutout Dimensions	118 mm x 92 mm (4.6" x 3.6")
Maximum Panel Thickness	8.0 mm (0.3")
Operating Temperature Range	-30 DegreeC to +70 DegreeC (-22 DegreeF to +158 DegreeF)
Storage Temperature Range	-40 DegreeC to +85 DegreeC (-40 DegreeF to +185 DegreeF)
Degree of Protection	IP65 (when installed with optional sealing gasket)

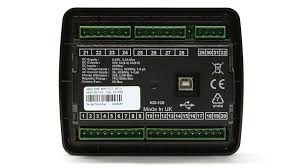

The DSE4620 is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.
KEY FEATURES • Large back-lit icon LCD display.• 3-phase generator sensing.• 3-phase generator and mains (utility) sensing.• 600 V ph-ph nominal system compatibility.• Generator & load power monitoring (kW, kV A, kV Ar, pf).• Generator overload protection (kW).• Configurable inputs & outputs.• Fuel & crank outputs.• Magnetic pick-up speed sensing.• Engine speed protection, engine hours counter, engine pre-heat, engine run-time scheduler, engine idle control for start/stop.• Battery voltage monitoring.• Configurable event log (50).• DSE Configuration Suite PC Software.

Download

There have been no reviews for this product yet.

DSE4620 Auto Mains (Utility) Failure Control Modules
