Description reviews

oltage	24V DC
Continuous Voltage Rating	8-35 V
Dimensions	216 mm x 158 mm x 43 mm (8.5" x 6.2" x 1.5")
Frequency Range	3.5-75 Hz
Maximum Operating Current	260 mA at 12 V, 150 mA at 24 V
Maximum Panel Thickness	8.0 mm (0.3")
Storage Temperature Range	-40 DegreeC to +85 DegreeC (-40 DegreeF to +185 DegreeF)
Operating Temperature Range	-30 DegreeC to +70 DegreeC (-22 DegreeF to +158 DegreeF)
Panel Cutout Dimensions	184 mm x 137 mm (7.2" x 5.3")
Degree of Protection	IP65 (when installed with optional sealing gasket)

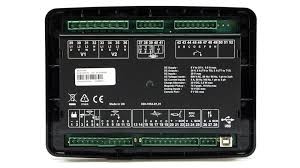

The DSE6120 MKIII is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, genset applications.

Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC.

The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offers an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.

Download

There have been no reviews for this product yet.

Deep Sea DSE6120 MKIII Auto Mains (Utility) Failure Control Module Diesel Genset Controller
