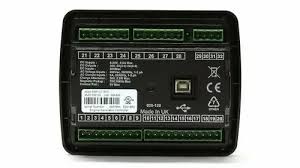

The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.

KEY FEATURES

• Configurable for use as an AMF or Auto Start Control Module.

• CAN & alternator speed sensing.

• Largest back-lit display in its class

• Heated display option.

• Backed-up real time clock.

• Fully configurable via DSE Configuration Suite PC Software

• Power save mode.

• 3-phase generator and mains (utility) sensing.

• 600 V ph-ph nominal system compatibility.

• Generator & load power monitoring (kW, kV A, kV Ar, pf).

• Accumulated power monitoring (kW h, kVA h, kVAr h).

• Generator overload protection (kW).

• Generator/load current monitoring & protection.

• Fuel and start outputs (configurable on CAN).

• 5 V output.

• Text mode.
