TD908XL PE Tarpaulin Shade fabric loom
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK PRICE
/PCS
Share:
Top Selling Products
Product details
TD908XL PE Tarpaulin Shade fabric loom is a wider type of water jet loom,which could be used to produce tarpaulin, artificial turf fabric and geotextile of PP or PE.

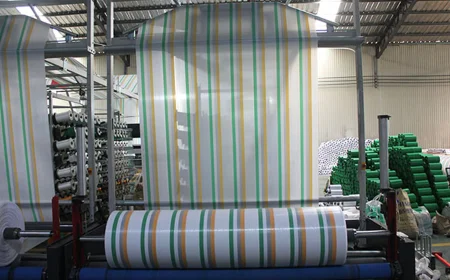

Tarpauline
Grass-Proof Cloth
PP or PE Geotextiles
Main technical parameters
| Reed Width | 360CM | 420CM | 460CM | 480CM |
| Effective Width | 350CM | 410CM | 450CM | 470CM |
| Weft Insertion | 1Nozzle,1 Pump |
| Weft Insertion | Plunger Type Positive Cam System |
| Weft Insertion | Ring Nozzle Stabilizer system |
| Measuring and weft storage | Electronic feeder |
| Weft density change | Electronic pick change |
| Optical Feeler |
| Motor Power | 3.7KW | 4.5KW | 4.5KW | 4.5KW |
| Auxiliary Power | 0.7 kw -1.5 kw |
| Speed | 300-400rpm |
| Shedding | Crank Shedding at bottom |
| Let-off | Electronic let off |
| Take-up | Electronic Take-up Motion |
| Selvage | Leno selvage or tuck in |
| Fabric Yarn Range | Yamn Fabric: 25-180gsm (Up to the yarn quality) |
| Fabric Yarn Range | Max weft yarn width: 6.5mm |
| Fabric Yarn Range | Weavina dense: 6-16/Inch |
| Reed Width | A (mm) | A2 (mm) | B1(mm) |
| 3600mm | 4330mm | 4930mm | 245 |
| 4200mm | 4930mm | 5530mm | 245 |
| 4600mm | 5330mm | 5930mm | 245 |
| 4800mm | 5530mm | 6130mm | 245 |
| The size of C is according to the warp plate diameter and quantity required |
