Product details

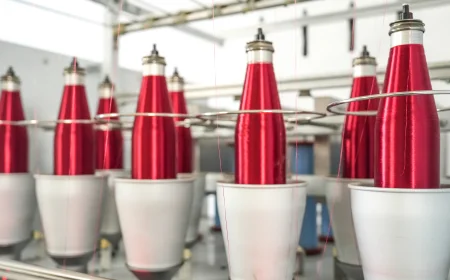

High production

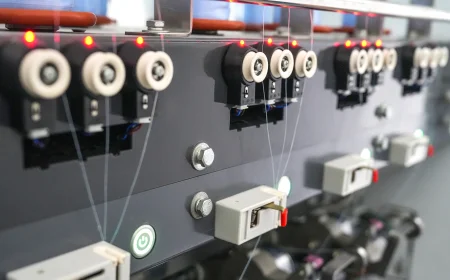

Each spindle is equipped withvan breakage and speed detection device, and instaled alarm light some models are ecuipped with wirecutter), strict control of yarn quality.
Fast speed
The clamping tension is uniform, the strength loss is small, the non-uniformity rate is low, and the output is high.
High efficiency

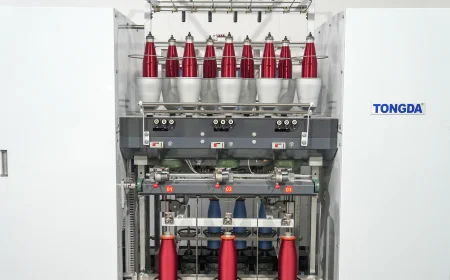

This machine is designed and manufactured by our company, the second generation of double twist and twinning machine, can be two orthree strands of silk/thread double twist at the same time combined into one strand. mainly used for weaving belt. sewing thread. cordhigh strength silk and other need to the initial double twist process of silk thread twisting processing.

Main technical parameters

(Feedin)Windingsize	Φ090*380 wire shell tube	Φ130*380 wire shell tube
Winding bobbin size	Edged tube	Edged tube
Winding weight	6KG/4KG/3KG/2KG	6KG/4KG
Winding speed	≤80m/min	≤80m/min
Spindle selection	Φ90	Φ110
Power confinguration	Depending on the configuration, the power configuration is 15KW-30kW	Depending on the configuration, the power configuration is 15KW-30kW
Transmission mode	Dragon belt collective drive	Dragon belt collective drive
Standard spindle number	240Ingot	216Ingot
Overall size	Length width =24800*730	Length width =27750*730
