Short Fiber Yarn Two-For-one Super Twister
Inhouse product
Product details
The short fiber yarn two - for - one super twister is applied in multiple fields. In the textile and garment industry, it produces high - quality yarns for various textiles. In the field of technical textiles, it manufactures high - strength industrial fabrics. Yarn trading and processing enterprises use it to enhance the added value of products. Meanwhile, it is also used in scientific research and teaching to facilitate textile technology research and talent cultivation.
Surface treatment
All elements in direct contact with the yarnfeature a high-grade surface fnish for optimum yarn protection.
Speed sensor
The speed sensor can detect yarn breakageand rotational speed, to avoid quality problemof spindle speed deviation, choose this sensorwe can geet precise production.

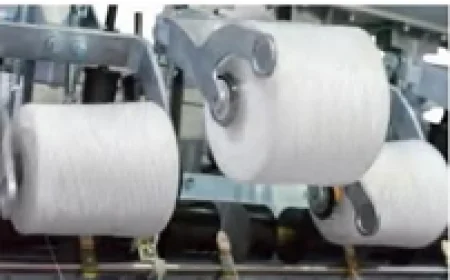

Pneumatical lifting device
In case a yarn break or feed package runout.the take-up package is lifted from the driveroller following a time delay.

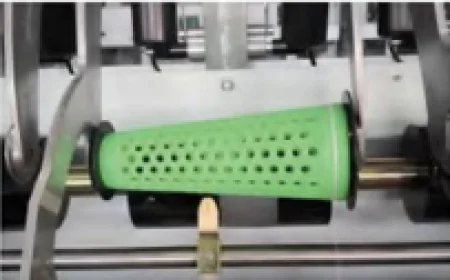

Tail device
The function of the tail on the twisted pack agetube is automatic, the length of the tail can becentrally adjusted.
Lubricant
Waxing and Lubricant reduce the friction coefhcient of the twisted yarn in the subsequentprocesses.and hairiness, dust & fbre fly also will be reduced.
Main technical parameters
Model | TD-07 | TD-08 | TD-09 | TD-10 | TD-11 |
Tpm | 80-2800T/m 2.03-71.09T/inch | 80-2800T/m 2.03-71.09T/inch | 80-2800T/m 2.03-71.09T/inch | 80-2800T/m 2.03-71.09T/inch | 80-2800T/m 2.03-71.09T/inch |
Spindle speed | 11.000rpm max. 22.000min-1 max. | 12.500rpm max. 25.000min-1 max. | 13.500rpm max. 27.000min-1 max. | 14.500rpm max. 29.000min-1 max. | 15.000rpm max. 30.000min-1 max. |
Count | Ne 4/2-100/2 With BL Ne 8/2-100/2 Without BL | Ne 8/2-170/2 With BL Ne 16/2-170/2 Without BL | Ne 20/2-200/2 With BL Ne 20/2-200/2 Without BL | Ne 30/2-200/2 With BL Ne 30/2-200/2 Without BL | Special for 100% cotton & silk Ne 60/2-200/2 Without BL |
Feed package | Max. Φ180mm Cylindrical | Max. Φ155mm Cylindrical | Max. Φ135mm Cylindrical | Max. Φ120mm Cylindrical | Max. Φ110mm Cylindrical |
Twisted package | 5°57'conical 280mm max. diameter | 5°57'conical 280mm max. diameter | 5°57'conical 280mm max. diameter | 5°57'conical 280mm max. diameter | 5°57'conical 280mm max. |
