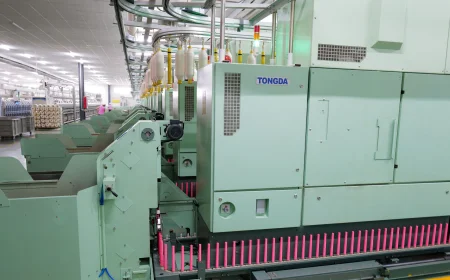

Spindle unit from 612 to 1824 spindles,prolonged by unit every 36 spindles each. NEW TYPE OVER-PROLONGATION FRAME One-piece intermediate frame,and high-precision spindle rail can meet the requirement of high speed spinning.

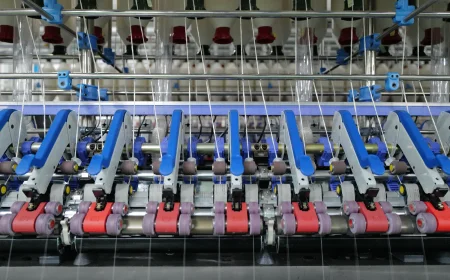

Quick-installing can be realized by positioned pin and hole. ADJUSTMENT FREE FOR COLUMN OF RING LIFT IT IS A DOMESTIC INNOVATION DUAL-SUCTIONING AT BOTH HEADSTOCK AND TAILSTOCK

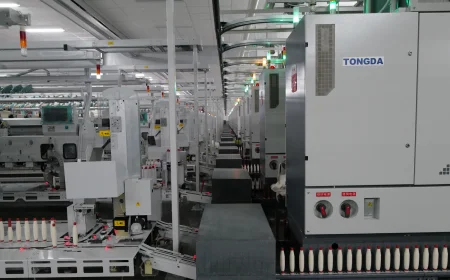

To be suitable for spinning different category of yarns. QUICK-DOFFING TECHNOLOGY Doffing duration 3 mins

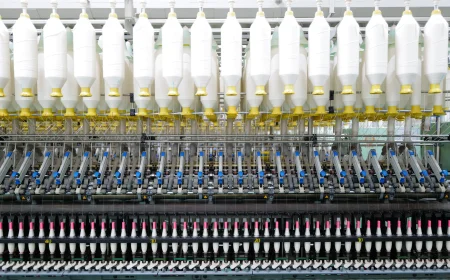

Adopt high-precision controlling technology,it has the same precise level with mechanical transmission system; Bottom rollers can be stopped first, then started in order to improve the auto-doffing performance with less end-breaks INTELLIGENT SPINNING EXPERT SYSTEM Yarn data can be stored,standard design for u-shape connection, failure illustrated on screen

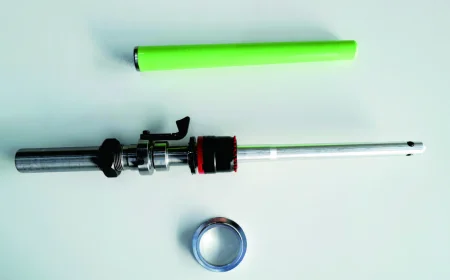

The highest speed for ring spinning equipped with TONGDA TD8100 Spindle, Bearing steel ring cup PG1-3854, TONGDA super light bobbin spindle speed can reach 25000 rpm plus Production capacity increasing 10% More Energy consumption will be reduced by 7%-10% Low noise level which is 3-5dB lower than othermachines

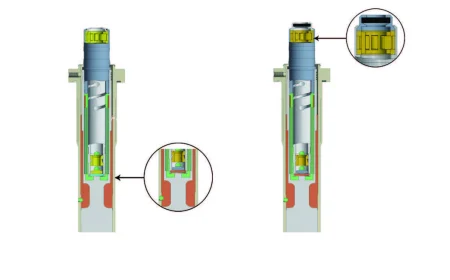

1.Due to special double elasticity structure design, under high-speed spinning conditions, the spindle tube has multi-level shock-absorbing and noise-reducing functions. 2.Multi-level shock absorption can effectively reduce the pressure on the bearings and extend life time of the spindles, under high-speed spinning conditions. 3.Under the same working conditions, compare with other types of spindles, energy consumption is reduced by 7%-10% with TD8100. 4.At a mechanical speed of 25,000rpm, after testing, the noise of this spindle is 3-5dB lower than other type of spindles. 5. Spindle wharve diameters are available in various specifications: 18.5, 19, 19.5, 20.5 6. Equipped with suitable packages, spindle speed can reach 25000 rpm Plus. 7. Can be equipped with new model yarn grippers. 8. A special sealing structure(patent) is installed with high-quality lubricating oil, and the oil changing cycle is more than 12 months.
