Jute Fabric Weaving Machine TD788

(0 reviews)

Sold by:
Inhouse product

Price:

ASK PRICE /PCS

Top Selling Products

Description reviews

Product details

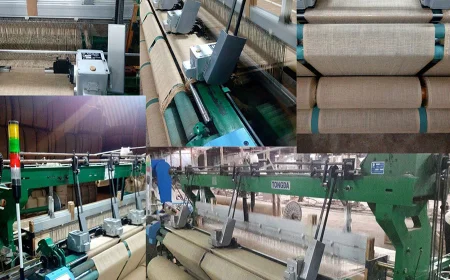

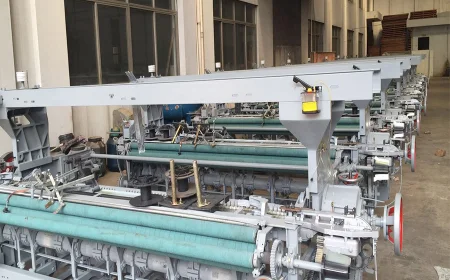

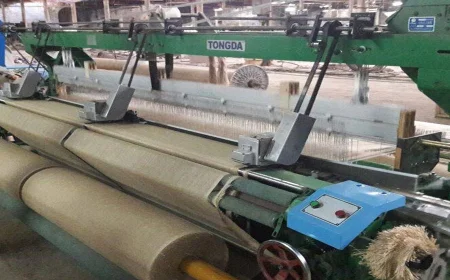

Jute fabric Rapier loom ,jute fabric weaving machine is a development model of TONGDA Company. lt has 4 colors weft selection,exchangeing color per weft and automatic finding broken weft.
This loom is used to weave crude fibre(cotton,wool,hemo,jute),chemical fibre and blending yarn etc. lt has 4 colors weft selection,exchangeing color per weft and automatic finding broken weft
TD-788 model jute fabric Rapier Loom is improved on the base of Model 728 shuttleless loom.. lt's speed increases very much than the shuttle loom,that the model loom can evidently improve unit area output and fabric quanlity.Also its suitability is wide.

Main technical parameters

Model	TD788
Reed width (cm)	180(74") 200(78") 230(90") 250(98") 280(11 0") 330(130")
Reed width (cm)	340(133") 360(141”）
Rotation speed(R.P.M)	150-210
Weft selection Yarn count	1-4 Colors
Dia.of warp beam(mm)	jute yarn 7-60Ne, Chemical fabric 100-650D
Dia.of rolling-up(mm)	0 - 600 0 - 400
Number of heddle frame	8-12
Insertion rate(m/min)	300-400
Electrical control	P.L.C
Motor power(KW)	1.5-1.8KW
Weight(kg)	1700-2200
Overall size(mm)	5400x1 827x2120(8250px/1 30")
