We are a reliable and experienced partner for the supply of insulators for the electrostatic precipitator(filter) and substations.  Our products include support insulators, shaft insulators, and wall bushing insulators.

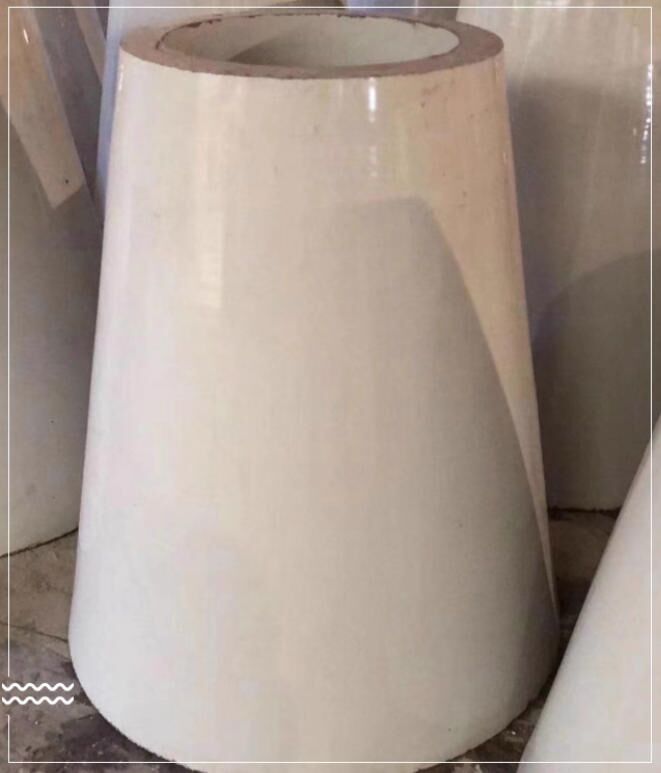

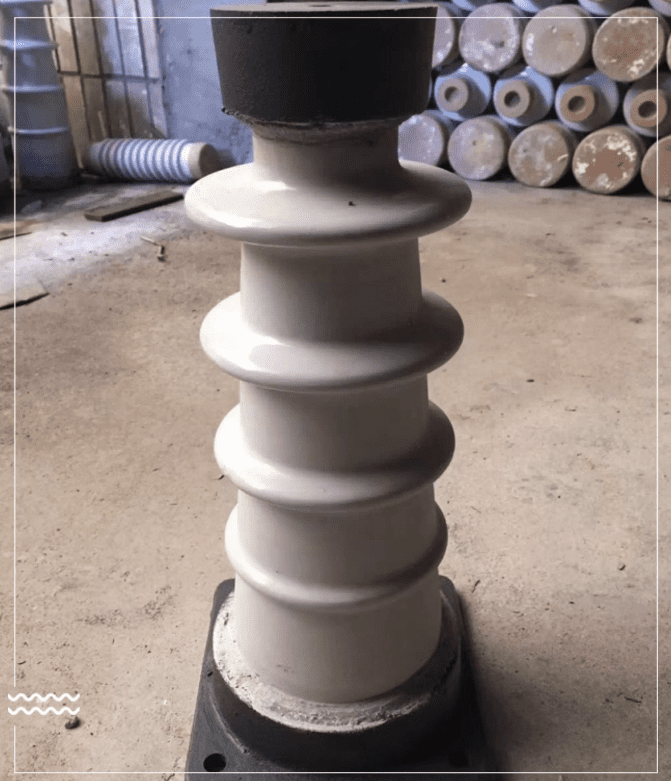

ESP Support Insulators

It is suitable for a working temperature of 250°C, a DC working voltage of 72KV – 100KV, and a compressive failure load of not less than 500KN.

Available Dimension:330*520*600mm, 350*450*500mm, 315*450*500mm

Available Models: 7231；7233；2601；2607；2609；7238；7238 – C；7249；2603；T515 – 3；2615

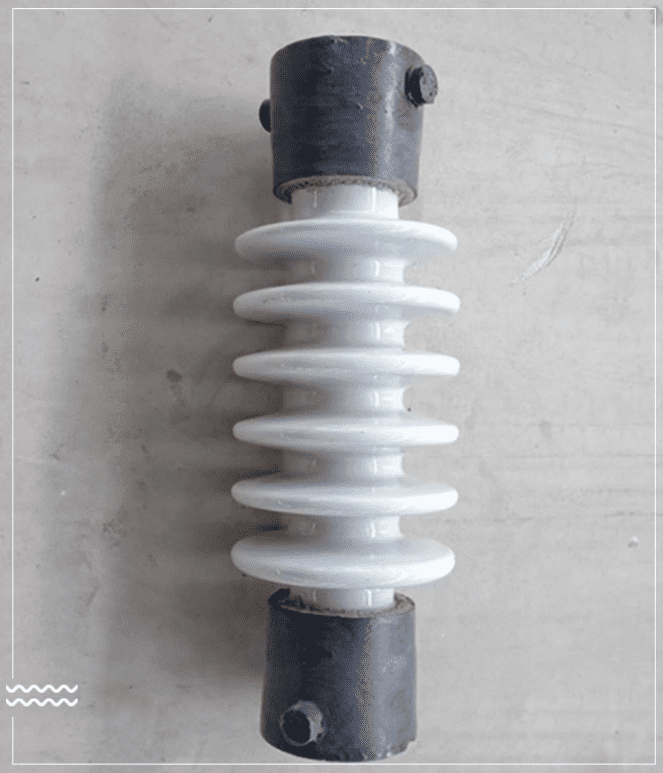

ESP Shaft insulators

The role of the shaft insulator within the ESP is to facilitate the rotation of the rod. This rod, in turn, initiates the movement of hammers that gently tap the collecting electrodes within the electrostatic precipitator. This tapping action serves to dislodge dust from the electrodes, effectively cleaning them.

Available Models: 7203；7202；2702；2709；2721；7205；7215；2722；2739；2715；7219；7222；2711；7223；YC133；2007；F4.18；F4.92

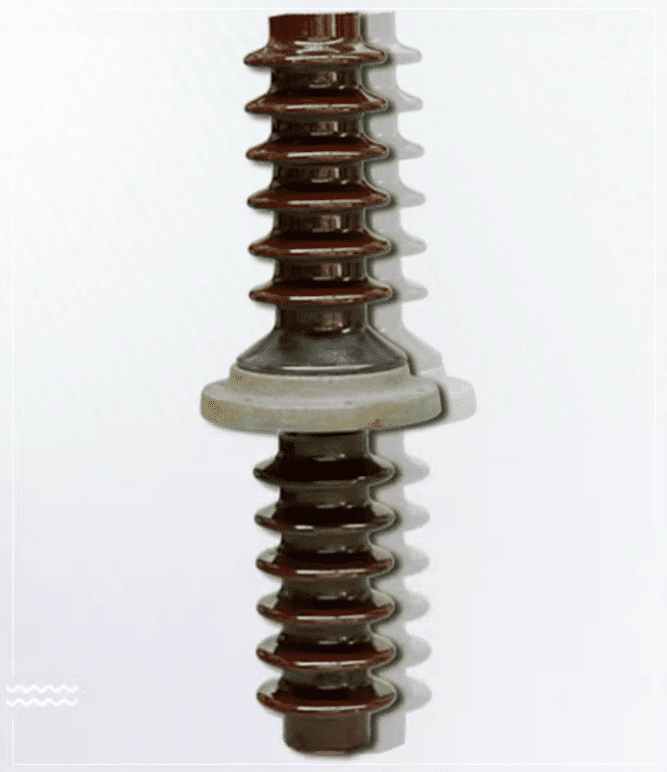

Wall Bushing Insulators
