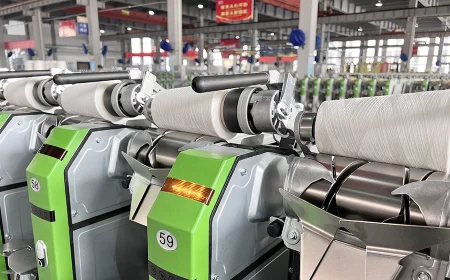

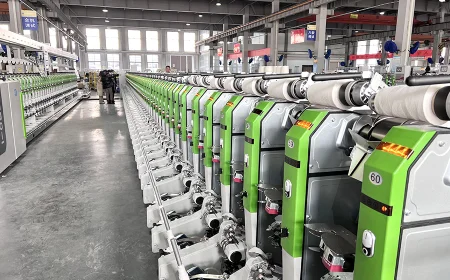

Automatic winding machine auto Coner VCRO
Inhouse product
Product details
VCRO automatic winder inherits the advantages of SMARO-NEW series winder, adopts bran-new profile design - featured by beautiful and dignified, adopts the bran-new smart anti-pattering device, new type of tension control system and new type of balloon control mechanism to ensure perfect package building, more even winding tension, high machine operation stability and reliability to meet customer requirement better.
Better New type of anti-pattering mechanism. New type of the enclosed drum cover. New type of soft tension mechanism. Electronic anti-wrap drum. Drum optional freely.
Faster Tension close loop control system. Optimized bobbin yarn suction nozzle. Optimized package yarn suction program. Optimized gill pin structure. Improved spindle panel installation method.
More Reliable New type of soft tension structure. New type of grid tension mechanism. Optimized tension yarn-catcher structure. Optimized empty bobbin conveyor. Increased empty bobbin selection box. Optimized air door structure. Transparent lints box window. Optimized mobile fan structure.
Main technical parameters
Main Technical Specification | |
Type | Single-spindles, single-sided arrangement, left or right hand. |
Application | Nm3.5 to the highest count cotton, wool, synthetic yarn and blended single yarn. |
Winding Speed | 400-2200 m/min, step-less speed regulation. |
Number Of Winding Spindles | 6 to 80 every two spacing increment. |
Spindle Distance | 320 mm. |
Applicable Bobbin Taper | 4°20', 5°57". |
Feeding Bobbin | Diameter = 32 - 65 mm, Length = 180 - 300 mm. |
Joint Type | Airsplicer, Aquasplicer. |
Magazine Type | 9 holes or 6 holes. |

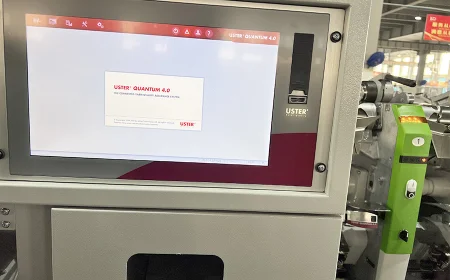

Joint Type | The latest USTER/ LOEPFE electronic yarn clearer. |
Drum | DC motor coaxial transmission, step-less speed regulation. |
Circles On Drum | 2 or 2.5. |
Anti - Pattering | Motor speed variation controlled in whole process. |
Joints Circle | Electrical logic control, intelligent cycle. |
Tension Control | Electromagnetic pressure. |
Power Installed | 33.57kW ( Actual consumption 11-15 kW). |
Overall Dimension (60 Spindles) | 22627 x 1365 x 2650 mm. |
