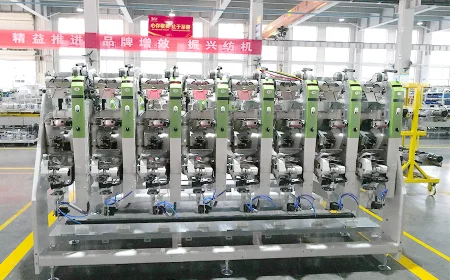

Auto-Winder Linked With Spinning Frame VCRO-E
Inhouse product
Product details
Application
This type is the new generation of auto-winder with a tray developed by Tongda's own research. The new auto-winder can meet the requirements of customers from Ne.6 to the highest count of yarn. It is featured with improvements in stable and reliable performance, winding into a perfect package, and is easier to operate. Its brightest spot is the spinning quality tracking system, which uses RFID (radio-frequency identification) technology. The faulty bobbins can be traced back to the spindle of the spinning machine, thereby solving the spinning problem and improving the quality of yarn.
Automatically transporting yarn packages and feeding bobbins not only saves labor but also connects the two labor-intensive procedures directly to realize automation and continuous production. This improves quality and enhances productivity.
Main technical parameters
Type | Single-spindle, single-sided arrangement, left hand or right hand. |
Fields of Application | Nm 3.5 to the highest count cotton, wool, synthetic and blended spinning yarn or plied yarn. |
Winding Speed (m/min) | 400-2200 , step-less speed regulation. |
Number of Winding Spindles | 6 to 36, Every two spacing increment. |
Spindles Distance (mm) | 320 |
Applicable Bobbin Taper | 4°20′ / 5°57′ |
Feeding Bobbin Yarn Specification (mm) | 中=32-43, Length =180-230 |
Joint Type | Air splicer, Aquasplicer |
Electronic Clearer | USTER, LOEPFE |
The Winding Drum | DC motor coaxial transmission, step-less speed regulation |
Anti-Patterning | Electronic anti-patterning system. |
Joints Circle | Electrical logic control, intelligent cycle. |
Tension Control | Electromagnetic weighting, closed-loop control. |
Waxing | Optional. |
Picking Ability | 40/min ( Double piecing unit, option ). |
Support Disc Diameter(mm) | 中70 |
Channel No. | Two for bobbin forward, one for bobbin back. |
Total Installation Power (kW) | 28 |
Dimension (20 spindles) (mm) | 1 yarn picking 10902 x 1680 x 2780 2 yarn picking 11302 x 1680 x 2780 |
