Wool Spinning Frame With Auto-Doffer FA1568E
Inhouse product
Product details
FA1568E Auto-Doffer Worsted Wool Spinning Frame is suitable for natural animal fbers such as wool, cashmere, mohair and their blended raw materials. lt mainly serves the wool spinning industry's high-count combed yarn, functional yarn, fancy yarn, etc. lt is also suitable for the production of fashion clothing, medical textiles, industrial fabrics, etc.

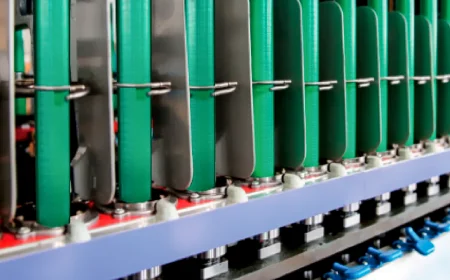

Electronic Spindle (optional)
Each spindle is driven by an individual motor(optional).lt simplifes machine structure,reduces noise,and improves working environment. Each spindle is controlled by integrated PCB drive circuit board,the spindle automatically stops once it is detected with yarn breakage or poor quality,which can reduce energy consumption.

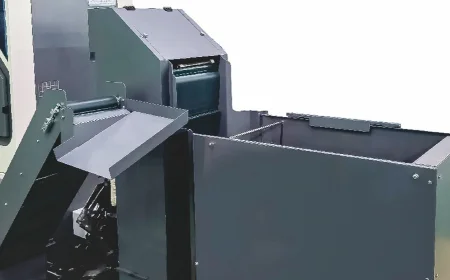

Auto-Doffng System with Bobbin Auto-Sorter
Itimproves dofhng and winding effciency.

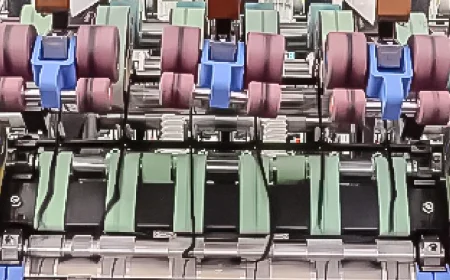

Four-Roller Compact Spinning Device
This device is a guarantee of yarn quality improve ment.The latest worsted compact spinning device with suction pipe placed under suction tube for easier operation.

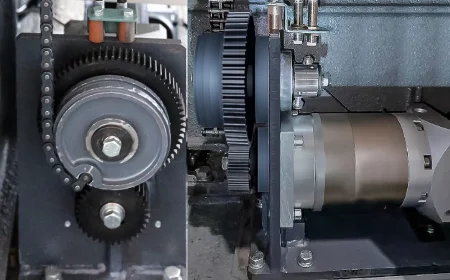

Electronic Lifting
The spinning electronic forming technology is driven by servo motor.lt simplifes the lifting mechanism and improves the level of digital spinning.
Main technical parameters
| Spindle gauge | 75mm |
| Spindle number | 396-636 spindles |
| Roller diameter | Ф35xф30xф35mm |
Lift | 230mm |
| Ring dia. | 48、5lmm |
| Fiber length suitable | 65-200mm |
| Yarn density suitable | 50-10tex/20-100Nm tex |
| Twist suitable | 200-1500 T/M |
| Twist direction | Z or S |
| Draft ratio | 10-40 |
| Spindle speed | 5000-13000RPM |
| Spindle driving | Rolling disc drive, double tension disc drive or electric spindie device |
| Drafting form | 3 rollers,long-short aprons,top arm |
| Lifting form | Electrically |
| Auto doffing bobbin picking rate | 100% |
| Auto doffing bobbin placing rate | 100% |
| Yarn piecing rate | ≥98% |
| Doffing time | 2.5min |
