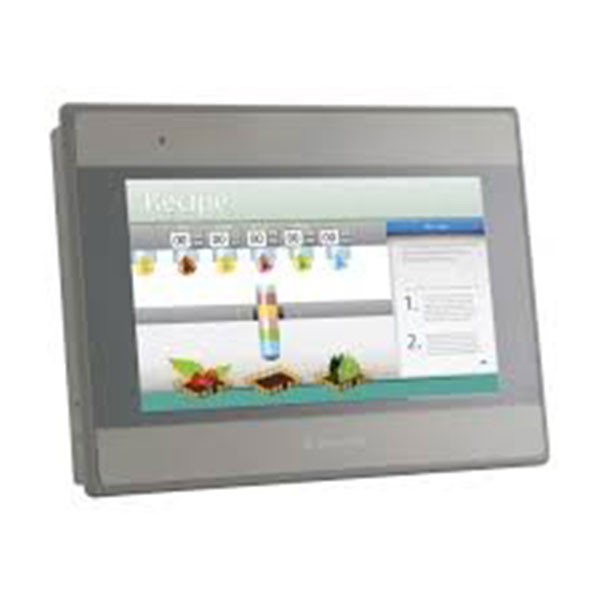

WEINTEK HMI MT8050iE 4.3 inch COLOR display
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
৳1.00
/Pcs
Share:
Top Selling Products
WEINTEK HMI MT8050iE information:
| Model | MT8050iE |
| Display Type | 4.3” TFT |
| Resolutions | 480 x 272 |
| Brightness Type (cd/ ㎡ ) | 400 |
| Contrast Ratios | 500:1 |
| Backlight | LED |
| Backlight Limits | >30,000 hrs. |
| Colors | 16.7M |
| LCD Angle (T/B/L/R) | 50/70/70/70 |
| Pixel (mm) | 0.198(H) x 0.198(V) |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Flash | 128 MB |
| RAM | 128 MB |
| WEINTEK HMI Processor | 32-bit RISC 600MHz |
| USB | USB 2.0 x 1 |
| Ethernets | 10/100 Base-T x 1 |
| COM Ports | COM1: RS-232/RS-485 2W/4W COM3: RS-485 2W |
| RS-485 Dual Isolations | N/A |
| RTC | Built-in |
| Input Powers | 24±20%VDC |
| Power Isolations | Built-in |
| Power Consumptions | 400mA@24VDC |
| Voltage Resistances | 500VAC (1 min.) |
| Isolation Resistances | Exceed 50MΩ at 500VDC |
| Vibration Endurances | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions WxHxD | 128 x 102 x 32 mm |
| Panel Cutout | 119 x 93 mm |
| Weight | Approx. 0.25 kg |
| Mount | Panel mount |
| Protection Structure | UL Type 4X (indoor use only) / NEMA4 / IP65 Compliant Front Panel |
| Storage Temperature | -20° ~ 60° C (-4° ~ 140° F) |
| Operating Temperature | 0° ~ 50° C (32° ~ 122° F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| CE | CE marked |
| UL | cULus Listed |
| WEINTEK HMI MT8050iE | Weight (kg): 0.2500 Country: China, Taiwan |
