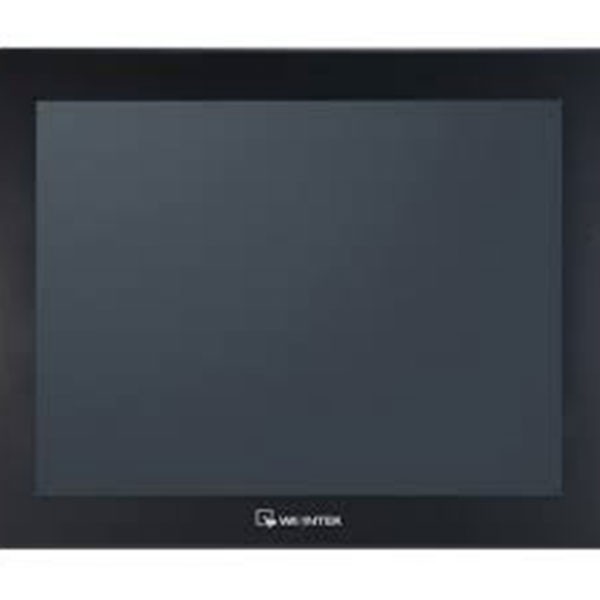

Weintek 10.4 INCH MT510TV TFT LCD DISPLAY
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK PRICE
/PCS
Share:
Top Selling Products
weintek 10.4 inch tft lcd price in bd? Weintek 10.4 INCH MT510TV TFT LCD DISPLAY. Use RISC processors in 400Mhz. It embraces TFT show with LED backdrop illumination. Carry out electrical separation from the power supply. Plausibility of association with USB 2.0. SD card space, for recipes (Except MT6050i). The new form of the EasyBuilder 8000 advancement climate permits the import of undertakings created with the past EasyBuilder 500 rendition to adjust them to the new group of terminals. The new 10 ″ terminal (MT6100i) has similar aspects as the past MT510TV5, a unique casing is accessible for mounting on the boards where the MT510TV4 (bigger size) was predicted.
Technical Data Weintek Tft Lcd Specification
Weintek HMI | Manufacturer : Weintek |
| MT510TV | |
| Display : 10.4″ TFT | |
| Brightness : 400 cd/m2 | |
| Color : 256 color | |
| Contrast Ratio : 300:1 | |
| Resolution (WxH dots) : 640 x 480 | |
| Back light : CCFLx2 | |
| CCFL life time : 50,000 hr. min | |
| Touch panel : 4 wires resistive type | |
| Touch Accuracy : 2mm | |
| Surface Hardness : 4H | |
| Serial port : HMI-PC (RS-232) | HMI-PLC (RS-232/485) | |
| Ethernet port Processor : 10Mbps | |
| Flash Memory : 2MB | |
| Recipe memory : 128kB | |
| Compact Flash card slot : N/A | |
| RTC : Yes | |
| Parallel Printer port : Yes | |
| System Diagnostic : Power failure detection | |
| Input Power : 24±5% VDC | |
| Maximum Power Consumption : 440 mA, 24VDC | |
| Complies with EN50081-2 and EN50082-2 standards | |
| Complies with FCC Class A |
There have been no reviews for this product yet.
