Product details

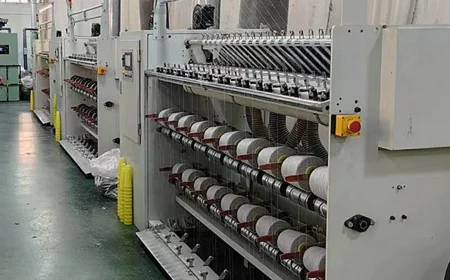

Precise Transmission Control
The use of servo motor and synchronous belt drive ensures accurate and stable transmission, effectively reduces the breakage rate and improves yarn quality.

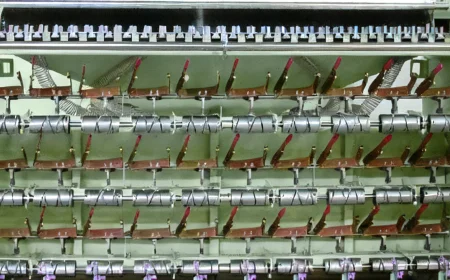

Flexible Process Adjustment
The roller spacing, raising coefficient and winding number are all adjustable to support diverse raising yarn styles and excellent quality.

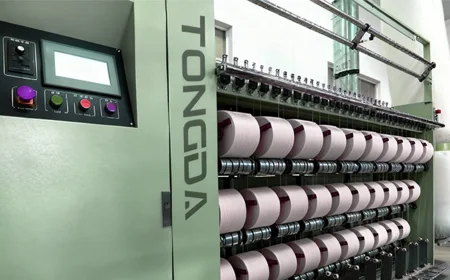

Efficient & Stable Production
The rollers are strictly controlled in terms of dynamic balance and roundness, and can run stably at high speed, with a yarn delivery speed of up to 200 m/min.

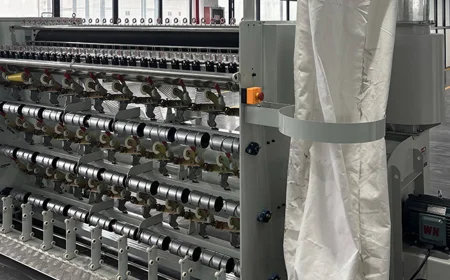

Environment & Quality Assurance
Equipped with a dust collection system to reduce pollution, improve working conditions, and avoid secondary contamination of yarn; it has functions of automatic stop when yarn is broken, full, or power off, and tension segment control to improve operational safety.

Main technical parameters

Item	Specifications	Item	Specifications
Spindle number	30	Spindle Gauge(mm)	230
Groove Roller Diamete(mm)	Φ82	Groove Roller Type	Superplastic Alloy
Bobbin Degree	3°30'5°57'	Max Diameter of Yarn Forming(mm)	280
Max Linear Speed(m/min)	200	Max Rotational Speed(RPM)	2000
Yarn Count(NM)	1-50	Max Length of Bobbin ( mm )	176
Raising Coefficient	3-20	The Creel Cone Positions	60
Input Roller Motor Power ( k W )	2	Raising Roller Motor Power(KW)	4
Groove Roller Motor Power(kW)	2	Fan Motor Power(KW)	4
Machine Length ( mm )	4200	Power	Three-phase 380V,zero line and ground wire
