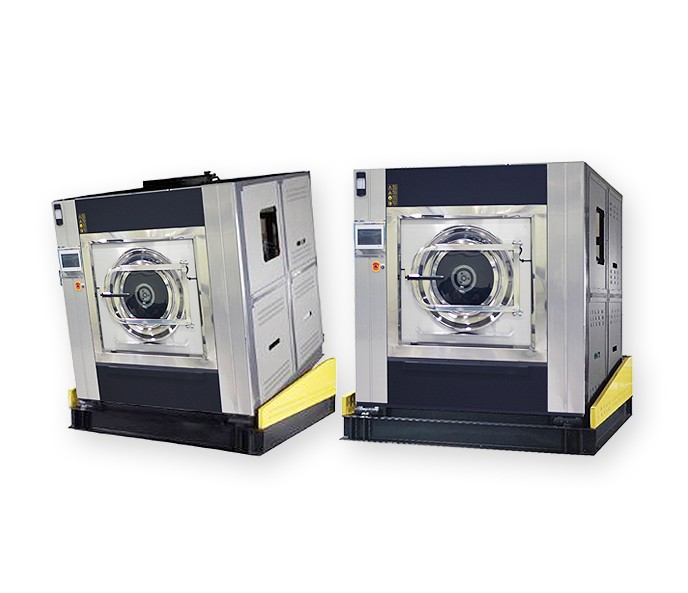

SNIW Series-Industrial washing machine (Korea)
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK Price
/PCS
Share:
Top Selling Products
Specification sheet
| Specification | unit | Small size | Medium size | Large size | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SNIW-20T | SNIW-25T | SNIW-35T | SNIW-50T | SNIW-70T | SNIW-100T | SNIW-120T | SNIW-150T | |||
| Capacity per 1cycle | kg/cycle | 20 | 25 | 35 | 50 | 70 | 100 | 120 | 150 | |
| Drum specification | Diameter | mm | 750 | 800 | 810 | 1000 | 1150 | 1360 | 1350 | 1600 |
| Depth | mm | 475 | 500 | 670 | 640 | 680 | 700 | 800 | 750 | |
| Volume | ℓ | 209 | 251 | 345 | 502 | 699 | 1016 | 1161 | 1507 | |
| Rotation Speed | Washing | RPM | 30-60 | 30-60 | 30-60 | 30-60 | 30-60 | 25-40 | 25-40 | 25-40 |
| Extraction | RPM | 400-880 | 400-820 | 400-800 | 400-750 | 400-700 | 400-650 | 300-600 | 300-550 | |
| RCF | G-force | 324.7 | 300.7 | 290 | 314 | 315 | 321.2 | 272 | 270 | |
| Motor | HP/kW/Pole | 5 / 3.7 / 4 | 5 / 3.7 / 4 | 7.5 / 5.5 / 4 | 10 / 7.5 / 4 | 15 / 11 / 6 | 30 / 22 / 4 | 40 / 30 / 4 | 50 / 37.5 / 6 | |
| Inverter | HP/kW | 5 / 3.7 | 5 / 3.7 | 7.5 / 5.5 | 15 / 11 | 20 / 15 | 30 / 22 | 40 / 30 | 60 / 45 | |
| Electricity spec | Voltage | Volt | 220 or 380 | |||||||
| Power consumption | Hz kW/h | 50 or 60 / 3.7 | 50 or 60 / 3.7 | 50 or 60 / 5.5 | 50 or 60 / 7.5 | 50 or 60 / 11 | 50 or 60 / 22 | 50 or 60 / 22 | 50 or 60 / 37.5 | |
| Piping | Water inlet (cool/Hot) | A | 15 / option | 15 / option | 20 / 20 | 25 / 25 | 32 / 32 | 40 / 40 | 40 / 40 | 50 / 50 |
| Steam | A | option | option | 15 | 20 | 20 | 32 | 32 | 40 | |
| Drain | A | 65 | 65 | 65 | 65 | 80 | 100 | 100 | 125 | |
| Exterior dimension | WxDxH | mm | 1100 x 1050 x 1720 | 1200 x 1170 x 1720 | 1200 x 1320 x 1680 | 1450 x 1500 x1800 | 1650 x1560 x 1930 | 2000 x 1750 x2150 | 2000 x1850 x 2150 | 2550 x 2450 x 2500 |
| Weight | kg | 640 | 730 | 870 | 1400 | 1900 | 2760 | 3000 | 5300 | |
- The above specification can be changed due to setting conditions.
- Optional Tilting function is available for large size machines(100kg or more capacity).
- Can be customized for specific purpose or request(clean rooms/hospitals/hotels/industrial laundries/etc.).
