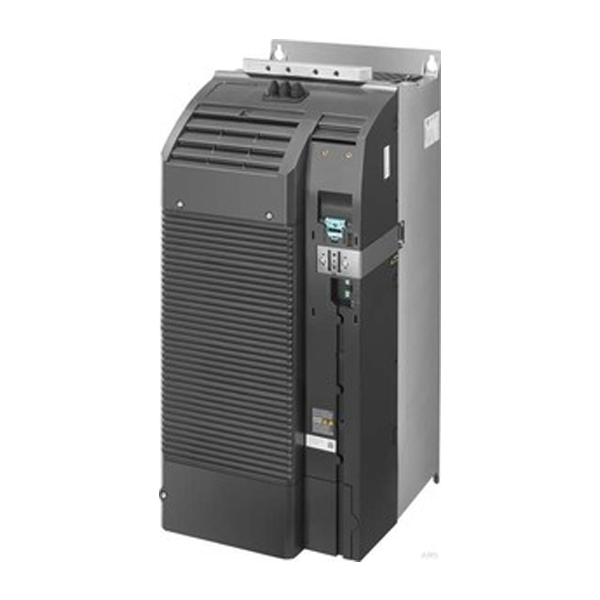

The Sinamics Vfd PM240-2 6SL3210-1PE31-5UL0 is an inverter power module from the Siemens Sinamics G120 family. It’s designed to work as part of a variable frequency drive (VFD) system to control the speed and torque of AC motors in industrial applications.

Technical Featues:

• Power Rating: 75 kW (low overload – LO) or 55 kW (high overload – HO)
• Input Voltage: 3-phase AC 380-480 VAC (+/- 10%)
• Output Voltage: Variable frequency 3-phase AC matching the input voltage
• Protection: IP20 (suitable for control cabinet mounting in a clean environment)

Special Features:

• Built-in Braking Chopper: Enables regenerative braking of the motor, feeding energy back to the line supply.
• VFD Filter: This specific model (6SL3210-1PE31-5UL0) doesn’t have an integrated line filter. The application and electromagnetic compatibility (EMC) requirements.
• Control Unit: The PM240-2 power module itself doesn’t provide motor control functionality.

Applications:

The Sinamics G120 PM240-2 inverter is suitable for various applications that require variable speed control of AC motors. The Sinamics G120 PM240-2 6SL3210-1PE31-5UL0
