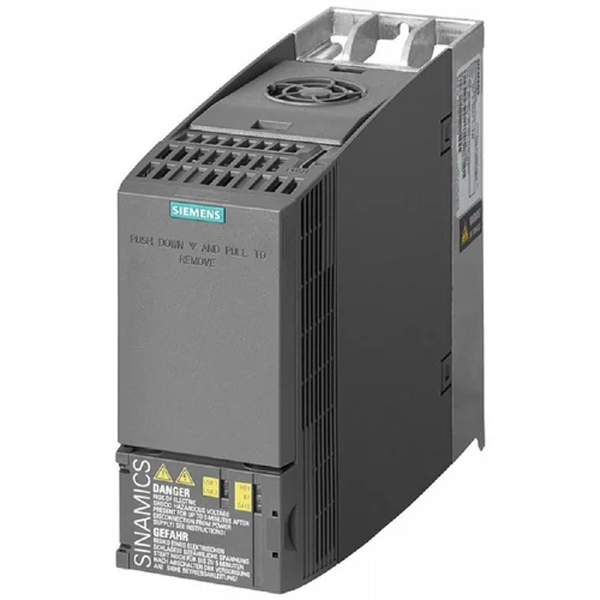

Sinamics G120C 6SL3210-1KE11-8UB1 Siemens Inverter

The Siemens Sinamics G120C 6SL3210-1KE11-8UB1 is a compact inverter designed for controlling single-phase AC induction motors in industrial automation applications. The Sinamics G120C 6SL3210-1KE11-8UB1 is suitable for a wide range of applications requiring variable speed control of AC motors

Here’s a breakdown of its key features:

• Power Rating: 0.55 kW with 150% overload, 380-480 VAC (+/- 10%)
• Output Voltage: Variable frequency 3-phase AC matching the input voltage
• Control Interface: Digital and analog inputs/outputs (6DI, 2DO, 1AI, 1AO) for control and monitoring
• Fieldbus Communication: USS/MODBUS RTU for integration with industrial control systems
• Degree of Protection: IP20 (suitable for control cabinet mounting in a clean environment)

Additional Features:

• Safe Torque Off (STO): Integrated function for safe motor shutdown according to SIL 2 / PL d.
• Compact Design: Requires minimal cabinet space.

Considerations of 6SL3210-1KE11-8UB1

• Successor Available: This particular model (6SL3210-1KE11-8UB1) may be discontinued by Siemens. It’s recommended to check for a successor model with potentially improved features or efficiency.
• Operator Keypad: The inverter itself likely doesn’t include an operator keypad for control and monitoring. You might need to purchase a compatible keypad separately.
