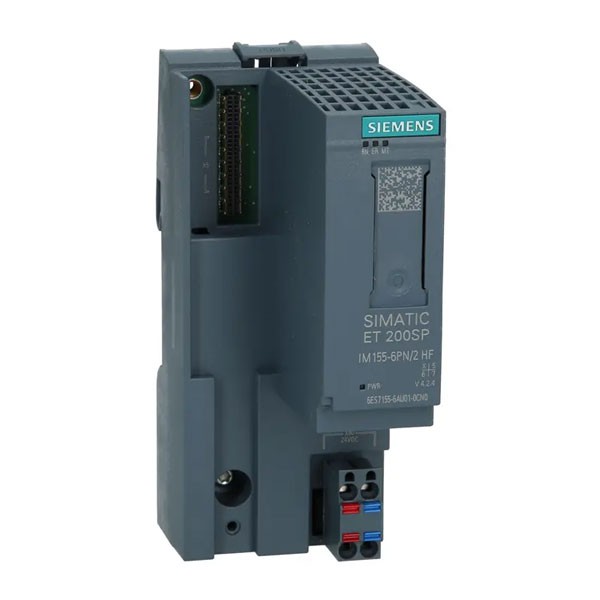

SIMATIC ET 200SP PROFINET interface module IM 155-6PN/2

The SIMATIC ET 200SP series PROFINET Interface Module IM 155-6PN/2 (6ES7155-6AU01-0CN0) is a distributed I/O module designed for PROFINET-based industrial automation systems. The ET 200SP family, known for its compact design, modularity, and high performance.

Product Specification:

• PROFINET Interface: To Supports with various PROFINET controllers such as SIMATIC S7-1200, S7-1500 or PC-based controllers.
• Network Ports: Comes with two RJ45 PROFINET ports for device daisy-chaining or network redundancy of SIMATIC ET200SP PROFINET interface module series
• Supporting to: Supports up to 64 I/O modules and SIMATIC ET 200SP PROFINET interface module IM 155-6PN/2 6ES7155-6AU01-0CN0. There Configured using TIA Portal (Totally Integrated Automation Portal).

Technical Specifications:

• Power Supply: There are requires a system power module for operation. Which is Rated voltage 24V DC.
• Communication: The Supports PROFINET features like IRT (Isochronous Real-Time), RT (Real-Time), and MRP.
• Hardware Installation: Mount the interface module on a DIN rail or an appropriate panel. Connect the power supply and ensure correct wiring.
• I/O Modules: Attach compatible ET 200SP I/O modules to the IM 155-6PN/2 base.

End of summery:

There are Process automation in industries like pharmaceuticals, automotive, and food & beverage.
