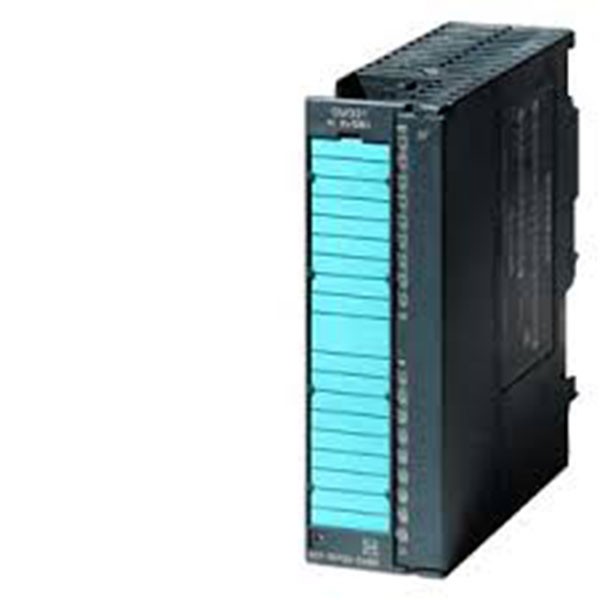

Siemens SIMATIC Module S7-300 6ES7321-7BH01-0AB0

The Siemens SIMATIC S7-300 module with part number 6ES7321-7BH01-0AB0 is a digital output module designed for the S7-300 series programmable logic controllers (PLCs). Here’s an overview of its features, specifications, and typical applications:

Key Features:

1. Digital Outputs: Provides digital output channels for controlling external devices such as actuators, solenoids, and relays.
2. Output Type: Typically supports relay outputs, suitable for switching higher current loads compared to transistor outputs.
3. Number of Outputs: The exact number of outputs can vary; this specific module typically offers 16 digital outputs.
4. Contact Configuration: Each output typically has a single-pole double-throw (SPDT) contact configuration (Form C).
5. Isolation: Provides isolation between the PLC logic and output circuits, enhancing noise immunity and protecting the PLC from voltage spikes.
6. Diagnostic Features: Includes diagnostic capabilities to monitor output status and detect faults or abnormalities.

Specifications:

• Model: 6ES7321-7BH01-0AB0
• Number of Outputs: 16 digital outputs (relays)
• Output Type: Relay outputs (Form C contacts)
• Rated Voltage: Typically 24V DC control voltage
• Switching Current: Each relay output can typically switch currents up to 2A
• Isolation: Optically isolated outputs
• Power Supply: Powered by the S7-300 PLC backplane

Applications:

• Industrial Automation: Used in various industrial automation applications for controlling actuators, motors, and other devices.
• Process Control: Applied in process industries for controlling valves, pumps, and other process equipment.
• Machine Control: Integrated into machinery for controlling outputs based on PLC logic.
• Building Automation: Used in building management systems for controlling HVAC (Heating, Ventilation, and Air Conditioning) systems, lighting, and other building services.
