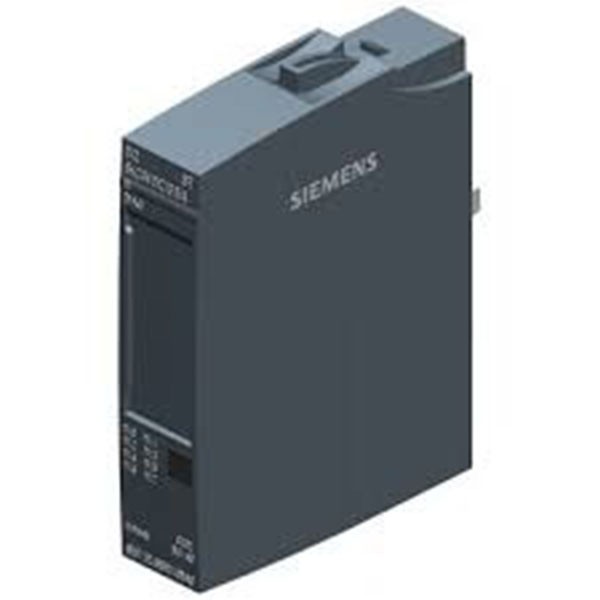

6ES7132-6BF01-0BA0 Digital Output module, Siemens Simatic et 200sp DQ8x24v dc/0,5a standard, source output PNP-switching. Siemens SIMATIC ET 200SP 6ES7132-6BF01-0BA0 is a digital output module. Siemens I/O module ready stock at our warehouse. Many models of Digital, Analog PLC extensions you will get from us.

Specification:

• Rated value: 24 Volt DC

• permissible range: lower limit is 19.2 Volt DC

• permissible range: the upper limit is 28.8 Volt DC

• Reverse polarity protection: Yes
• Current consumption: max. 35 mA; without load
• Rated value: 24 Volt DC

Digital Output module Digital outputs:

• Digital output Source: PNP

• Digital outputs: 8

• Current sourcing: Yes

• Digital outputs: Yes (parameter type)

• Short Circuit protection: Yes

• Limitation of inductive shutdown voltage: (L+) -50 Volt

• Controlling a digital input: Yes

• Outputs switching capacity: Yes

• Resistive load: maximum 0.5 A

• Lamp load: maximum 5 W

Switching frequency

• Resistive load: maximum 100 Hz
• Inductive load: maximum 2 Hz
• Lamp load: maximum 10 Hz
