ANALOG INPUT SM331 8 AI 6ES7 331-1KF02-0AB0

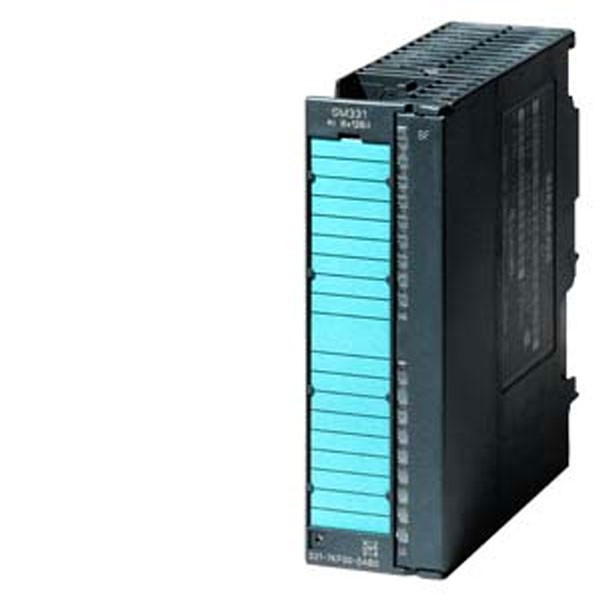

The Siemens S7-300 Analog Input SM 331 8 AI (model number: 6ES7 331-1KF02-0AB0) is an expansion module. Designed for your Siemens S7-300 PLC system. Specifically, it’s an analog input module, meaning it expands your PLC’s. The Capabilities to deal with analog sensor signals and convert them into a format the PLC can understand.

Function of the key features of the SM 331:

• Connects to various analog sensors (e.g., temperature, pressure, flow sensors) that output continuous voltage or current signals.
• Converts these analog signals into digital values the S7-300 PLC can understand and process for control purposes.

Specifications (These might vary depending on the specific datasheet):

• Number of Analog Channels: 8 separate channels for handling signals from 8 different sensors.
• Analog Input Range: Likely supports a voltage range like ±10 VDC or 0-10 VDC for the analog input channels. The specific range will be defined in the datasheet.
• Resolution: This refers to the smallest voltage or current change the module can detect. It might be 12 bits (4096 counts) or higher, providing a more granular digital representation of the analog signal.
• Isolation: Some versions of the SM 331 might offer galvanic isolation between the sensor inputs and the PLC internal circuitry, protecting the PLC from electrical noise or ground loops.

Additional Considerations:

• Data Sheet: Refer to the datasheet for the specific model number (6ES7 331-1KF02-0AB0) to get the most accurate details on specifications, wiring diagrams, and configuration settings.
• Programming: The S7-300 PLC program needs to be configured to handle communication with the analog I/O module and process the digital representations of the analog sensor signals for control purposes. Siemens STEP 7 software is commonly used for programming the S7-300.
• Compatibility: Ensure this analog input module is compatible with the specific S7-300 CPU model you are using in your PLC system.

The Siemens S7-300 Analog Input SM 331:

• Expands PLC Functionality: Enables your PLC to interact with analog sensors, broadening its application in process control scenarios where continuous measurement is crucial.
• Digital Conversion: Provides digital representations of real-world physical quantities measured by analog sensors, allowing the PLC to make control decisions based on sensor data.

I hope this explanation clarifies the function of the Siemens S7-300 Analog Input SM 331. Remember that the specific details might vary depending on the datasheet and the version of the module you have.
