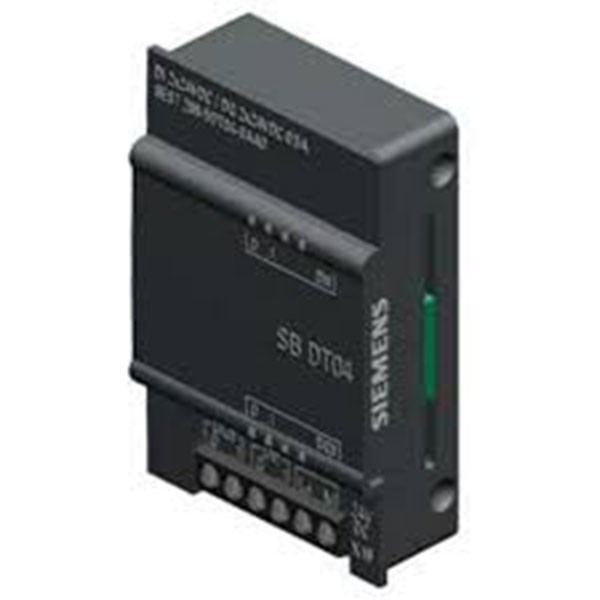

Siemens S7-200 SMART Digital I/O SB DT04

The Siemens S7-200 SMART Digital I/O SB DT04 with 6ES7288-5DT04-0AA0 is S7-200 SMART PLC series. It is designed to be a small, low-cost expansion module that plugs directly into the CPU to add I/O points.

Key Specifications and Features:

• Model: Digital I/O SB DT04
• Part Number: 6ES7288-5DT04-0AA0
• Function: This signal board provides additional digital inputs and outputs to a compatible S7-200 SMART CPU.
• I/O Count: 2 Digital Inputs (DI) and 2 Digital Transistor Outputs (DO).
• Voltage: 24 VDC for both inputs and outputs.
• Output Current: Each transistor output can handle up to 0.75 A.

Summery Status:

The Siemens 6ES7288-5DT04-0AA0 is an active product. The S7-200 SMART series is a popular and current product line from Siemens. Designed to be a simple plug-and-play addition to standard type S7-200 SMART CPU modules. It is not compatible with the compact CR series CPUs.
