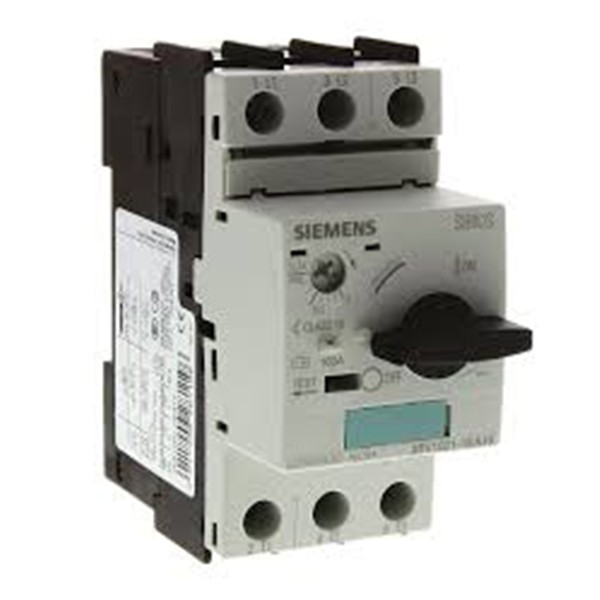

SIEMENS 3RV2011-1KA10 Motor Protection Circuit Breaker

9A–12.5A | 5.5kW | S00 | SIRIUS Series

The SIEMENS 3RV2011-1KA10 is a high-performance motor protection circuit breaker designed for motors up to 5.5kW. It provides reliable overload and short-circuit protection in a compact S00 frame, ideal for industrial control panels and automation systems.

Key Features

• Adjustable current range: 9A to 12.5A

• Suitable for motors up to 5.5kW (AC-3)

• Space-saving S00 frame design

• Integrated protection against overload, short circuit, and phase failure

• Trip class 10 for quick fault response

• Rated operating voltage: up to 690V AC

• High mechanical durability: up to 100,000 operations

• Easy DIN rail or screw mounting

• Complies with IEC/EN 60947-4-1 standards
