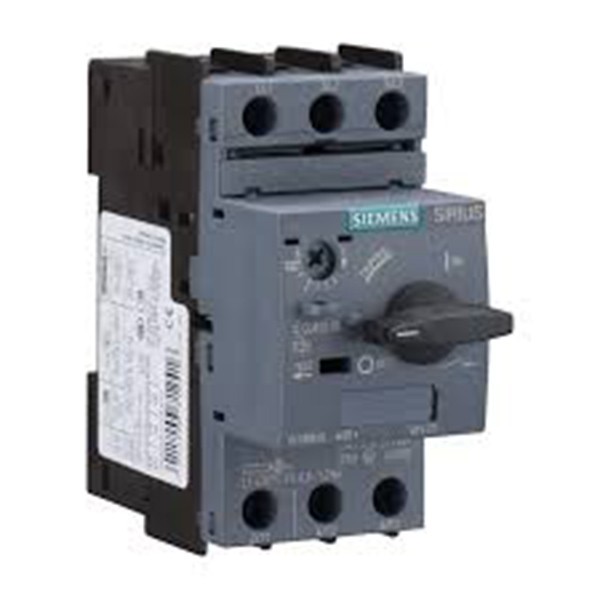

SIEMENS 3RV2011-1JA10 Motor Protection Circuit Breaker

7A–10A | 4kW | S00 | SIRIUS Series

The SIEMENS 3RV2011-1JA10 is a robust motor protection circuit breaker engineered for reliable protection of motors up to 4kW. It offers dependable overload and short-circuit protection within a compact S00 frame, making it ideal for modern control panel installations.

Key Features

• Adjustable current range: 7A to 10A

• Motor power capacity: up to 4kW (AC-3)

• Compact S00 frame for space efficiency

• Built-in overload, short-circuit, and phase-failure protection

• Fast-acting tripping (Trip Class 10)

• Rated operating voltage: up to 690V AC

• Long mechanical life: up to 100,000 switching cycles

• Supports both DIN rail and screw mounting

• Standards: IEC/EN 60947-4-1 compliant
