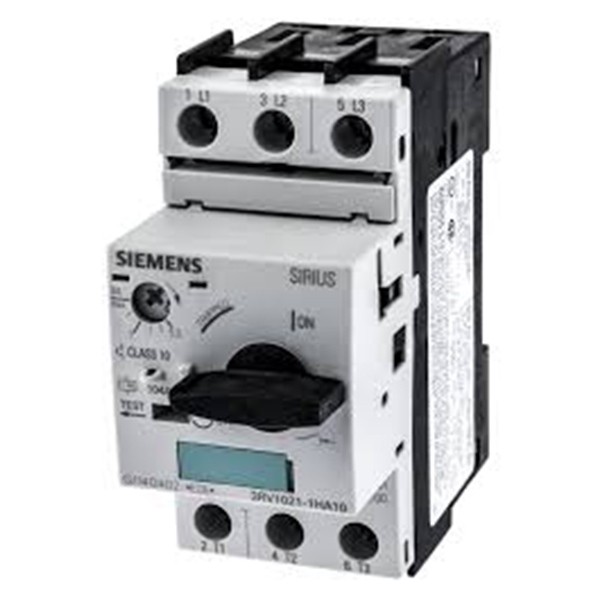

SIEMENS 3RV2011-1HA10 Motor Protection Circuit Breaker

5.5A–8A | 2.2kW | S00 | SIRIUS Series

The SIEMENS 3RV2011-1HA10 is a compact motor protection circuit breaker designed for reliable protection against overloads, short circuits, and phase failures. Suitable for motors up to 2.2kW, it offers long-lasting performance and easy installation in industrial control systems.

Key Features

• Adjustable current range: 5.5A to 8A

• Supports motor loads up to 2.2kW (AC-3)

• Compact S00 frame size for space-saving panels

• Built-in overload and short-circuit protection

• Fast tripping with Class 10 characteristics

• Maximum operating voltage: 690V AC

• Long mechanical lifespan: up to 100,000 operations

• Compatible with DIN rail and screw mounting

• Complies with IEC/EN 60947-4-1 standards
