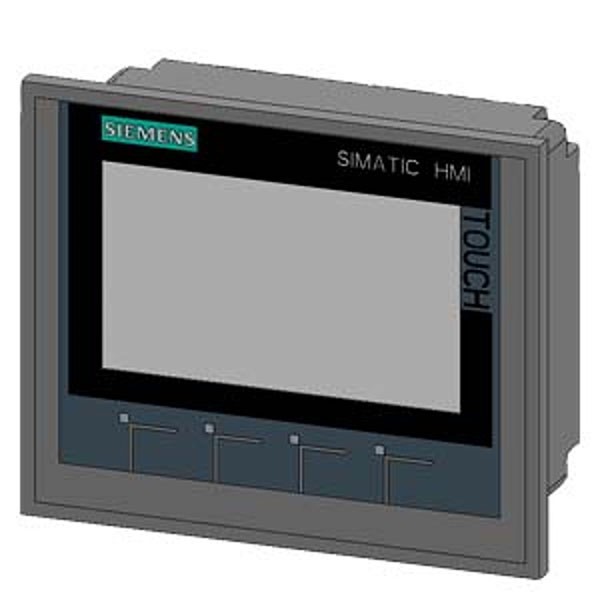

Siemens ktp400 HMI 6AV2 124-2DC01-0AX0 Comfort Panel
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK PRICE
/PCS
Share:
Top Selling Products
The Siemens HMI 6AV21242DC010AX0 Comfort Panel KTP400. SIEMENS HMI 4 inch KTP400 Comfort Panel Touch Screen which is part number 6AV2124-2DC01-0AX0.Such as, the Comfort panel is very easy to operate with machine and programming and smooth operation.
Product Specification:
- Four inch Siemens HMI KTP400 Comfort Panel
- Official part No 6AV2124-2DC01-0AX0
- SIMATIC HMI KTP400 Comfort panel
- Key/touch operation, 4″ widescreen TFT display of both
- 16 million colors in the hmi screen
- PROFINET interface, MPI/PROFIBUS DP interface
- 4 MB configuration memory
- Windows CE 6.0 operation system, backup/restore with service commission
- The configurable from WinCC Comfort V11
Technical Data of Comfort Panel:
| Product type designation | KTP400 Comfort |
| Design of display | TFT |
| Screen diagonal | 4.3 in |
| Number of colors | 16 777 216 |
| Horizontal image resolution | 480 Pixel |
| Vertical image resolution | 272 Pixel |
| Back lighting MTBF at 25 °C | 80 000 h |
| Backlight dimmable | 0-100 % |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.13 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, type | 3.1 W |
| Memory available for user data | 4 M byte |
| USB Mini B | 5-pole |
