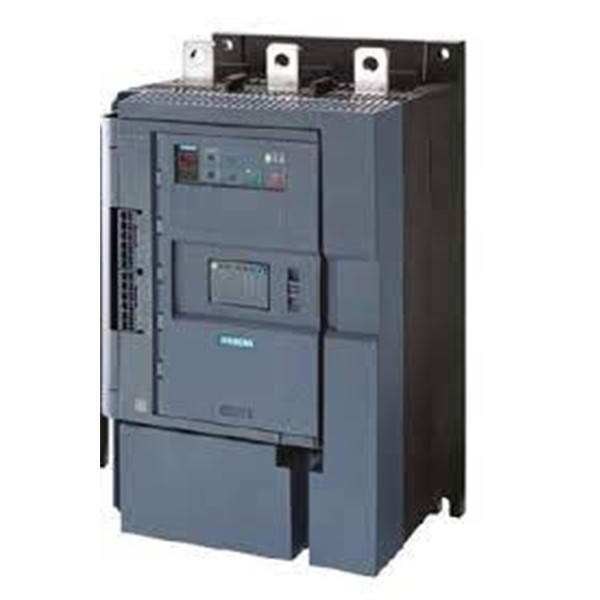

SIEMENS 3RW5554-6HA14 is a high-capacity digital soft starter from the SIRIUS 3RW55 series, engineered for smooth, shock-free starting of three-phase motors up to 800 kW. Operating at 200–480 V AC, it effectively reduces mechanical wear and electrical current surges, making it ideal for heavy industrial applications requiring reliable motor control.

Key Features

Motor Power Rating:
 • 450 kW (Normal Duty)
 • 800 kW (Heavy Duty) at 400 V AC

Rated Operational Current:
 • 840 A (Normal Duty)
 • 748 A (Heavy Duty)

Control Voltage: 110–250 V AC/DC
Mounting: Panel mounting with screw fixing
Integrated Bypass Contact System: Yes
Operating Temperature Range: –25°C to +60°C
Insulation Voltage: 600 V AC
Degree of Protection: IP20
Communication: Optional PROFINET / PROFIBUS / Modbus modules
Degree of Pollution: 3 (as per IEC 60947-4-2)
