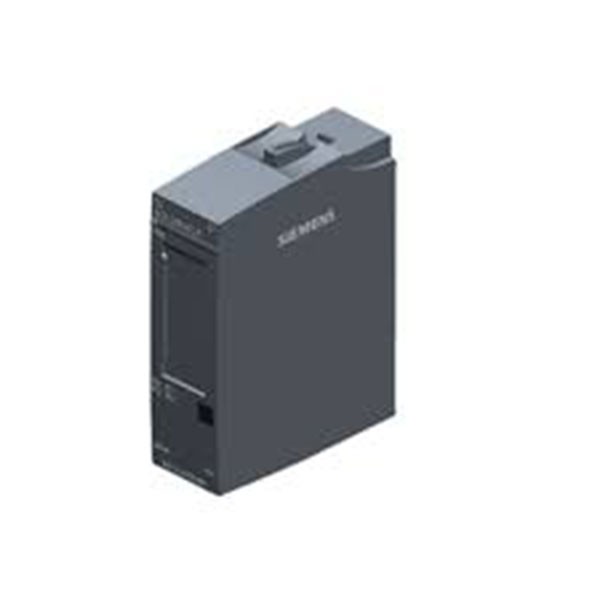

SIEMENS Digital Output Module 6ES7131-6BH01-0BA0

The SIEMENS 6ES7131-6BH01-0BA0 is a digital output module used in the ET 200SP distributed I/O system. This module provides digital output capabilities for industrial automation systems and integrates seamlessly into the ET 200SP series, which is known for its compact design and high performance.

Key Features of 6ES7131-6BH01-0BA0:

• Output Channels: The module provides 16 digital output channels.
• Output Type: Transistor outputs designed for 24V DC.
• Current Rating: Each output channel can handle a current of up to 2A.
• Compact Design: Part of the ET 200SP series, known for its space-saving design

Technical Specifications:

• Power Supply: The module operates at 24V DC.
• Output Voltage Range: 20.4V to 28.8V DC.
• Output Current: Max 2A per channel.
• Module Current of Max 10A for the entire module.
• Switching Frequency: Up to 1 kHz.
• Fast switching times suitable for real-time control applications.
• Isolation between channels and system bus.

Installation and Wiring:

• The module is designed for easy installation on a DIN rail within the ET 200SP system.
• Requires a compatible base unit (BU type A0 or higher) for mounting and connection.
• Screw terminals or push-in terminals are provided for secure and easy wiring of field devices.
