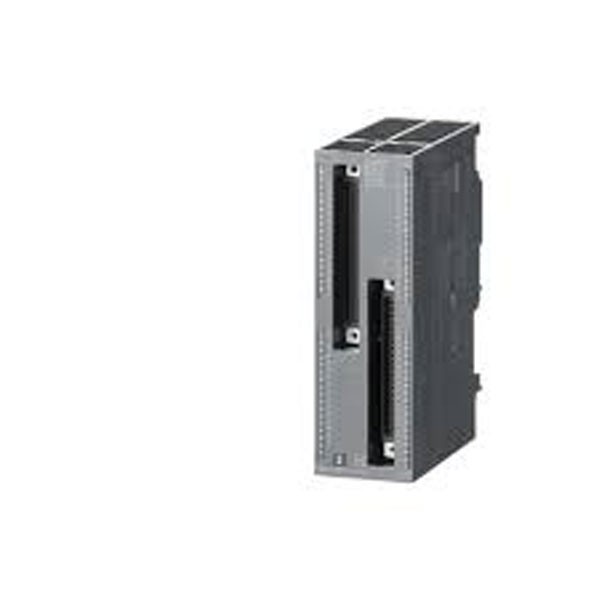

Siemens 6ES7-322-1BP50-0AA0 Digital Output Module Simatic S7 300
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK PRICE
/Pcs
Share:
Top Selling Products
Siemens 6ES7-322-1BP50-0AA0 Digital Output Module
Siemens 6ES7-322-1BP50-0AA0 Digital Output Module Simatic S7 300 importer in Bangladesh is BD Engineering Solution.The Siemens S7-300 series fulfills the mid-range necessities of the market and with its design, enables you to single out modules
Key Features:
- SIMATIC S7-300 SM 322 digital output
- 16 Isolated in groups
- 64DO 24 V DC
- output source 0.3 A
- Total current 2 A (group)
- Terminal blocks 6ES7392-1, 8 A/module
Digital Output Module details:
| Supply voltage | |
| Load voltage L+ | |
| Rated value | DC 24 V |
| Permissible range | lower limit DC 20.4 V |
| permissible range | upper limit DC 28.8 V |
| Input current | |
| Load voltage L+ | 75 mA without load maximum |
| Backplane bus | 5 V DC, max. 100 mA |
| Power loss | |
| Power loss | 6 W |
| Digital outputs | |
| Digital outputs | 64 |
| Outputs switching capacity | |
| On lamp load | 5 W Maximum |
| Load resistance range | |
| lower limit | 80 Ω |
| upper limit | 10 kΩ |
| Output voltage | 24DC |
| Output current | 1 |
| Rated value signal “1” | 0.3 A |
| Signal “1” permissible range | 2.4 mA minumum |
| Signal “1” permissible range | 0.36 A maximum |
