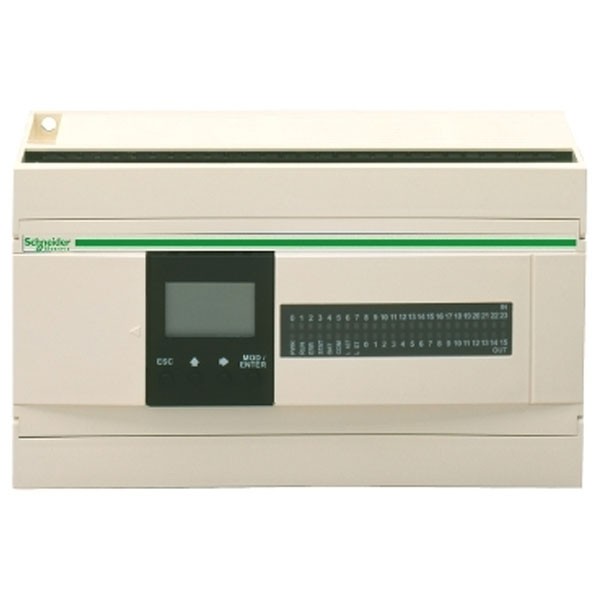

Schneider PLC Twido I/O-40 TWDLCAE40DRF

(0 reviews)

Sold by:
Inhouse product

Price:
ASK PRICE /Pcs

Quantity:
(120 available)

Total Price:
ASK PRICE
Share:

In conclusion, BD Engineering Solution now provides Schneider Twido TWDLCAE40DRF for price in bd contact us. However, we work with many brands like Mitsubishi, LS, Delta, Omron, and Schneider we are the top industrial spare parts. Moreover, we are the biggest importer in Bangladesh. In other words, if you need any unique product for your automation industry please let us know we arrange it for you.

Schneider Product

  • HMI
  • PLC
  • VFD
  • SENSOR
  • POWER SUPPLY
  • MODULE
  • SERVO MOTOR & DRIVE

Schneider PLC Twido TWDLCAE40DRF TWDLCAA40DRF Specification

Product rangeTwido
Material typeCompact base controller
The ideaTransparent Ready
discrete I/O number40
discrete input number24
discrete input voltage24 V
discrete input voltage typeDC
discrete output number14 for relay
2 for transistor
[Our] rated supply voltage100…240 V (AC)
Maximum number of I / O expansion modules7
Use slotsMemory cartridge
Isolated input argumentSink or source
Input voltage limit20.4 to 26.4 V
Insulation resistance between channelsNone
Minimum load0.1 mA
Communication resistance30000 µOhm
Input / Output connectionNon-removable screw terminal block
Max input / output number152 removable screw terminal block with Input/Output expansion module
208 spring terminal block with Input/Output expansion module
264 HE-10 connector with Input/Output expansion module
Free slots1



More About Twido

However, the Schneider twido TWDLCAE40DRF price in bd  programmable logic controller reads input, controls the output, and analyzes based on program logic. For instance, create a twido plc program twido programming with a series of instructions. Therefore, written in one of the following languages. However, the following languages use to create twido machine programs. Above all, the instruction list program of a series of logic expressions.

The Twido range of compact programmable controllers provides an all-in-one solution

Eight compact base controllers. Therefore, 4 expandable base controllers with expansion i / o modules are available. However, differing in their processing capacity and the number of their c 24 v inputs and relays and transistor outputs (10, 16, 24) and 40 i /. o). Most importantly, in making other diagnostics, if the logic controller determines that the configuration contains a defined i / o module that is not physically present.
