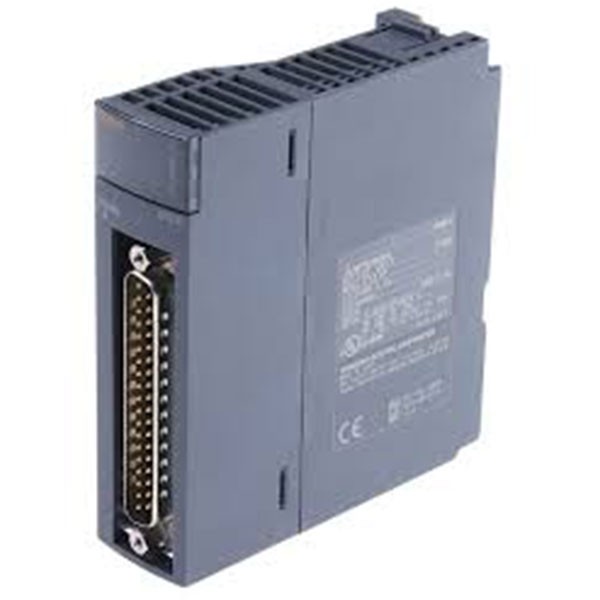

The QY81P is a digital output module from Mitsubishi, designed for use with Mitsubishi PLC (Programmable Logic Controller) systems. Here are some key features and specifications:

Key Features of QY81P:

• Output Channels: 32 points
• Output Type: Transistor output
• Rated Load Voltage: Typically 24V DC
• Load Current: Maximum load current is usually specified per channel
• Response Time: Fast switching for high-speed applications
• Connection: Terminal block for easy wiring

• Specifications of QY81P Mitsubishi:

  • Rated Voltage: 24V DC
  • Max. Load Current: Typically around 0.1A per channel
  • Power Consumption: Low power consumption 100mA
  • Isolation of Circuit: Optical isolation between output channels and PLC bus
  • Protection Level: Built-in protection against overload, short-circuit, and overheating

  Installation and Configuration Setup:

  • Ensure compatibility with the PLC system programming
  • Properly wire the outputs according to the terminal block racking
  • Configure the module settings through the PLC programming software
