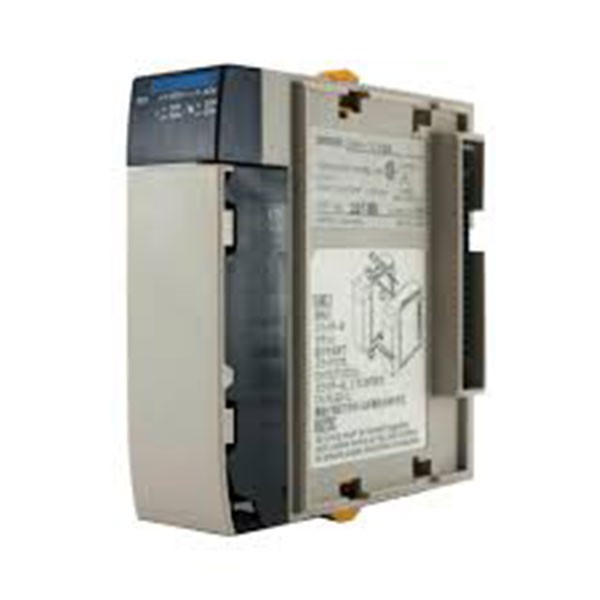

OMRON Temperature Controller Unit CQM1-TC102

The OMRON CQM1-TC102 is a temperature control unit designed for use with the CQM1 series of PLCs (Programmable Logic Controllers). It is used to monitor and control temperature in various industrial processes by integrating with thermocouples or other temperature sensors.

Key Features:

• Temperature Control: Capable of precise temperature measurement and control.
• Input Types: Supports multiple types of thermocouples, including K, J, and others.
• Control Methods: Offers PID (Proportional-Integral-Derivative) control for stable and accurate temperature regulation.
• Integration: Seamlessly integrates with the CQM1 PLC system for centralized control and monitoring.

Specifications:

• Number of Channels: 2 channels for temperature inputs
• Input Types: Thermocouple inputs (Types K, J, etc.)
• Control Outputs: Relay or voltage outputs for controlling heating elements, cooling systems, or other actuators
• Temperature Range: Depends on the type of thermocouple used (e.g., Type K: -200 to 1370°C)
• Resolution: High resolution for precise temperature measurement
• Accuracy: High accuracy in temperature measurement and control
• Power Supply: Powered by the CQM1 PLC system
• Dimensions: Compact design for easy installation in the PLC system

Applications:

• Industrial Ovens: Maintaining consistent temperatures in ovens used for baking, curing, or heat treatment processes.
• HVAC Systems: Controlling temperatures in heating, ventilation, and air conditioning systems.
• Manufacturing Processes: Ensuring precise temperature control in processes like plastic molding, chemical production, or food processing.
