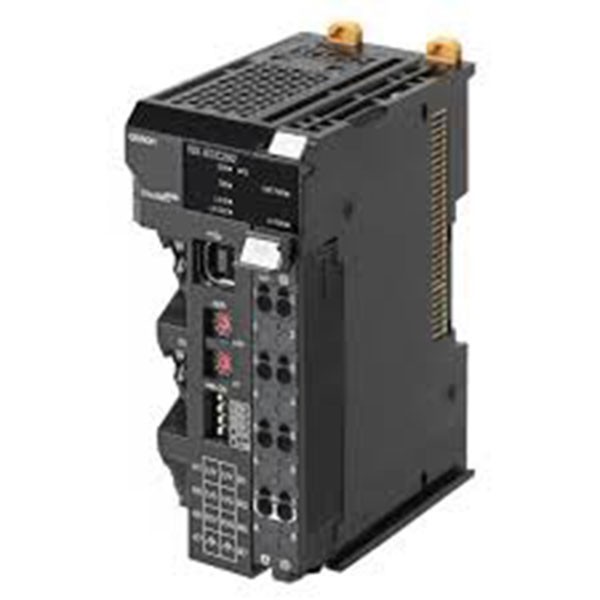

Omron PLC NX-ECC203 NX-series

The Omron NX-ECC203 is a vital component within the Omron NX-series I/O system. It functions as an EtherCAT Coupler Unit, acting as a bridge between the EtherCAT network and the NX I/O units. The Omron NX-series I/O units. It is typically connected to an EtherCAT master controller.

Key Specifications and Features:

• Module Type: EtherCAT Coupler Unit
• Network Protocol: EtherCAT, a high-performance real-time Ethernet network.
• Functionality: It serves as the gateway for the NX I/O units to communicate on the EtherCAT network. It manages the data exchange between the EtherCAT master and the connected NX I/O slaves.
• I/O Capacity: Can support up to 63 NX I/O units (including other couplers, I/O units, and safety units) in a single EtherCAT network segment.
• Communication Speed: Supports 100 Mbps EtherCAT communication.
• Configuration: Configured using Omron’s Sysmac Studio software, which allows for integrated project development, including PLC logic, HMI design, and motion control.

Product Status:

The Omron NX-ECC203 is an active product. It is a current component of Omron’s NX-series I/O system and is actively manufactured and supported by the company.
