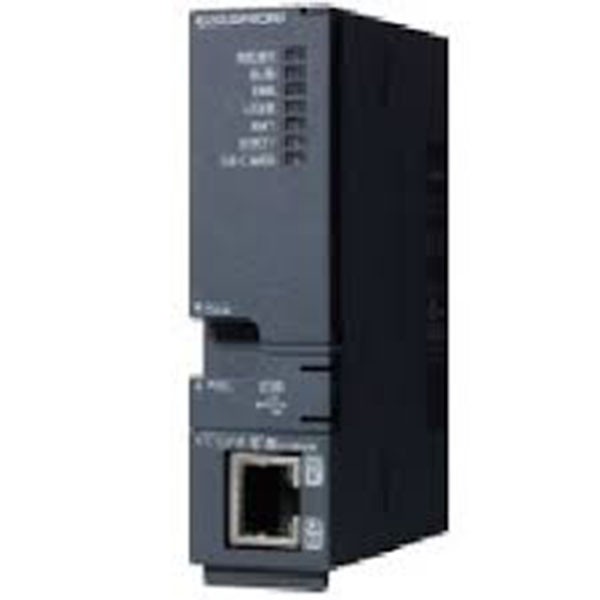

Mitsubishi PLC CPU Q03UDECPU

The Mitsubishi Q03UDECPU is a high-performance Universal Model QCPU from the MELSEC-Q Series Programmable Logic Controllers (PLCs). It’s  automation systems requiring fast processing speeds, significant program memory, and advanced communication capabilities, particularly built-in Ethernet. The Q03UDECPU Its recommended replacement models are the Q03UDVCPU High-speed Universal Model QCPU and the R04CPU

The Mitsubishi Q03UDECPU:

• PLC Series: MELSEC-Q Series (Universal Model QCPU)
• Program Capacity: 30 K steps (120 KBytes). This provides ample space for complex control logic.
• Processing Speed: 20 ns/logical instruction. This is a very fast processing speed, enabling quick scan times for demanding applications.
• I/O Device Points: Supports up to 8192 I/O device points (including local and remote I/O), with 4096 local I/O points. This allows for significant system expansion.
• Built-in Communication Interfaces:
  • Ethernet Port: 1 x RJ45 port (10/100 Mbit/s). This is a key feature, enabling seamless communication with HMIs, SCADA systems, other PLCs, and network devices, supporting protocols like MC Protocol.
  • USB Port: 1 x USB connector (Mini-B type). For direct connection to a PC for programming, monitoring, and debugging.
• Memory Card Interface: The specification of SD memory card slot supports SRAM/Flash/ATA cards previously). This allows for data logging, program backup/restore, and boot operations.
• Multi-CPU High-Speed Communication: Supports high-speed data transmission between multiple CPUs within the same MELSEC-Q rack.

Summery:

It’s advisable to consider the Q03UDVCPU or R04CPU for long-term support and future compatibility. However, if you need a replacement for an existing system, the Q03UDECPU is still widely available.
