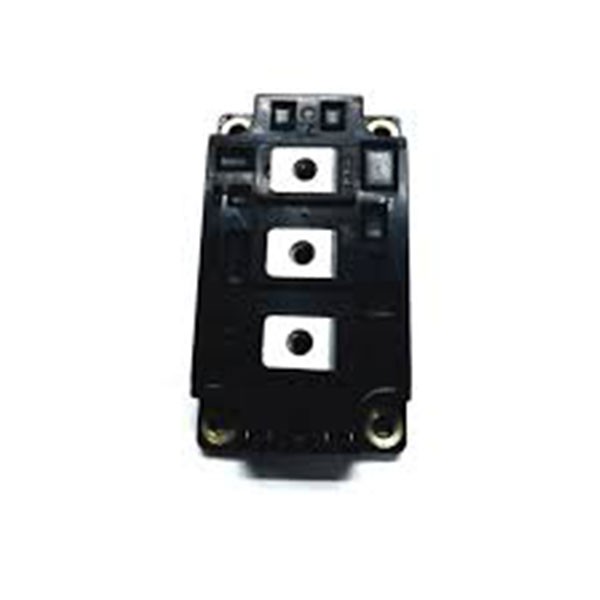

The Mitsubishi IGBT Module CM400HA-24H is a high-power switching module. In other words, used in various applications such as inverter drives. Moreover, UPS systems, and welding equipment. Therefore, Here are some of its technical specifications:

Mitsubishi IGBT Module CM400HA-24H Technical Specification

• Maximum Collector-Emitter Voltage: 1200V
• Maximum Collector Current: 400A
• Maximum Power Dissipation: 900W
• Switching Frequency: Up to 20kHzThe IGBT Transistor is a three-terminal power semiconductor device. That combines the high-speed switching capability of a MOSFET with the high-voltage and high-current handling capability of a junction transistor. It is commonly used in power electronics applications where high efficiency and fast switching speeds are required.

  The CM400HA-24H module contains multiple IGBTs and free-wheeling diodes connected in a half-bridge configuration. The IGBTs are controlled by a gate signal which switches the devices on and off. When the IGBT is on, it allows current to flow through the device and when it is off, it blocks current flow.

  The module also includes a heatsink to dissipate the heat generated by the IGBTs during operation. This helps to ensure that the module stays within its specified temperature range and operates reliably.
