Description reviews

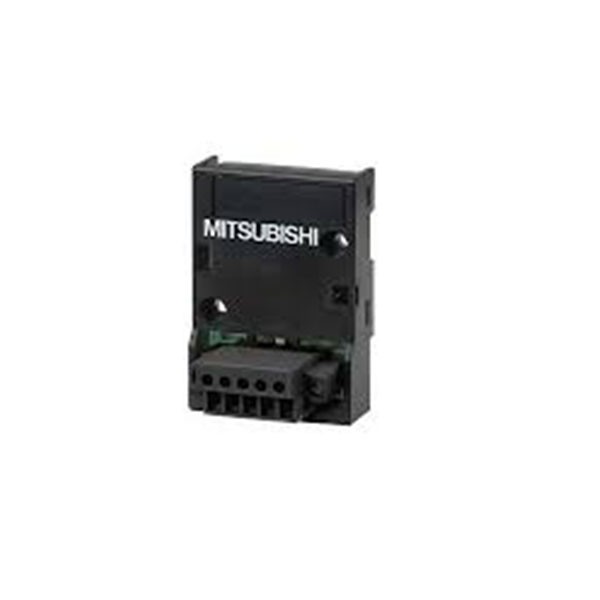

Mitsubishi FX PLC FX3G-485-BD. Explains the FX3S Series PLC fixes for I/O, wiring, download, and protection. FX3G Series Explains the FX3G Series PLC fix up for I/O, wiring, installation, and preservance. FX3S/FX3G/FX3GC/FX3U/FX3UC Series.

Technical data:

Item	Specification
Transmission standard	RS-422
products distance	50 m maximum
Connection method	RJ45 connector
Indication (LED)	RD, SD
Connection type	Half-duplex
Communication format	Non-Protocol Contact, Computer Link, Parallel Link, N: N network.
Focus points	Mitsubishi FX PLC FX3G-485-BD
Insulation	Not insulated

Mitsubishi FX PLC –

Communication type	Function
N: N network type	Data transfer connecting up to eight FX Series PLCs.
Parallel link method	Data transfer between two PLCs relationship
Computer link method	Data transfer between PLC and computer.
Non-protocol contact	Serial communication between PLC and RS-485.
Inverter communication*1	Controlling Mitsubishi’s FREQROL Inverter communication instructions.

Technical data:

Manual name	Manual No.
FX3S Series	JY997D48601 MODEL CODE: 09R535
FX3G Series	JY997D31301 MODEL CODE: 09R521
FX3S/FX3G/FX3GC/ FX3UC Series	JY997D16601 MODEL CODE: 09R517
FX Series User’s Manual – Data Communication Edition	JY997D16901 MODEL CODE: 09R715

Signal	Contents
SG	Signal ground
Not used	–
SDA	FX3G-485-BD-RJ to RS-485 devices
RDB	RS-485 devices to FX3G-485-BD-RJ
RDA	RS-485 devices to FX3G-485-BD-RJ
SDB	Sending data
Not used	–
Not used	–

Model name	Applicability
FX3S Series PLC	system no 1.00 or later (from the first step)
FX3G Series PLC	Ver. 1.00 or later (from the first step)

products details Mitsubishi FX PLC FX3G-485-BD:

Main function: Communications unit
products name: MELSEC-F Series.
Sub-rating name: FX3G
Functions: Communications expansion board module unit
Communication protocol: RS-485
Mounting type mode: DIN rail
Compliant with products: CE EMC, ABS approval, DNV approval.
Mitsubishi Product Type: FX-series
Product ID no: FX3G-485-BD
Mitsubishi Type method: FX-series

The FX3G is the successor to the FX1N that will continue the concept of combining going with affordability. FX3G CPUs are products with existing FX2N & FX3U expansion modules, including the recently introduced FX3U-ADP best products modules, and it is used as a changeable for FX1N PLCs.
