LOGO PLC OBA8_AM2_RTD 6ED1-055-1MD00-0BA1. LOGO! AM2 RTD expansion module PLC, PS: 12/24 VDC, 2AI-50+200 °/C Pt100/1000.

The LOGO! OBA8 AM2 RTD module (6ED1 055-1MD00-0BA1) is an expansion module designed for use with Siemens LOGO! PLCs, specifically the LOGO! 8 series. This module is used to connect and measure temperature sensors (RTDs – Resistance Temperature Detectors), enabling temperature monitoring and control applications within an automation system. Here’s a detailed overview:

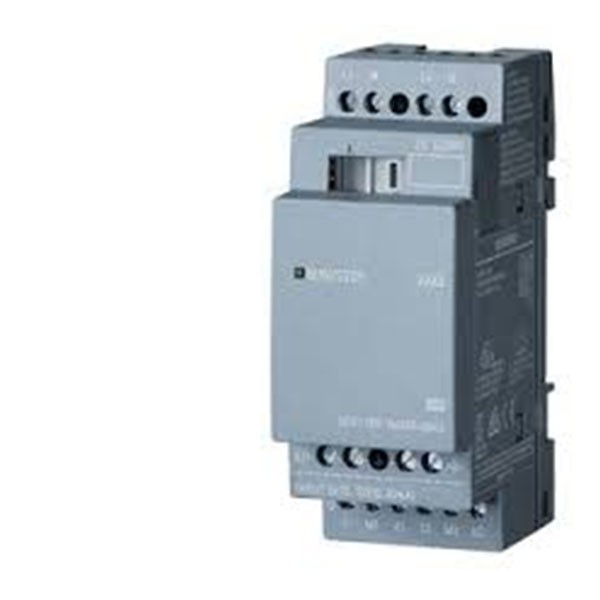

Siemens LOGO! OBA8 AM2 RTD Module (6ED1 055-1MD00-0BA1) Overview

• RTD Input Channels:
  • Channels: 2
  • Supported: PT100, PT1000, and other similar RTDs.
  • Range: Wide range suitable for various industrial applications
• Integration:
  • Compatibility: Directly integrates with LOGO! 8 series PLCs, expanding their input capabilities.
  • Plug-and-Play: Easy to add to existing LOGO! systems without extensive reconfiguration.
• Power Supply:
  • Voltage: Typically powered by the same power supply as the LOGO! 8 base unit (24V DC).
• Configuration:
  • Software: Configurable via the LOGO! Soft Comfort software, enabling easy setup and integration into the control logic.

Installation and Configuration

• Mounting: Mounts easily on standard DIN rails alongside the LOGO! base module and other expansion modules.
• Wiring: Connect the RTD sensors to the input terminals of the module.
• Configuration in LOGO! Soft Comfort: In the LOGO! Soft Comfort software, add the AM2 RTD module to the project configuration.
• Programming: Integrate the RTD inputs into the control logic using ladder logic or function block diagrams.
• Testing: Test the setup by verifying temperature readings and ensuring they match expected values.

Benefits:

• Scalability: Expands the capabilities of the LOGO! 8 PLC system to include precise temperature measurements.
• Flexibility: Supports various RTD sensor types, making it versatile for different applications.
• Ease of Use: Simple integration and configuration process reduces setup time and complexity.

6ED1 055-1MD00-0BA1:

The Siemens LOGO! OBA8 AM2 RTD module (6ED1 055-1MD00-0BA1) is an essential expansion module for applications requiring precise temperature monitoring and control. Its integration with the LOGO! 8 series PLCs.
