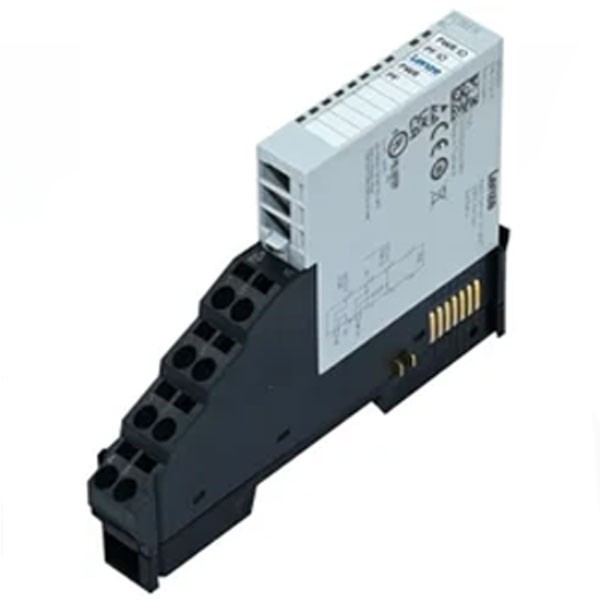

LENZE PLC I/O Module Base EPM-S110 CANopen EPM-S140

The LENZE is a prominent player in the automation industry, offering a range of products for various applications. The EPM-S110 and EPM-S140 are likely part of their PLC I/O module series. This module is probably a base unit or rack for mounting other I/O modules. It provides the power supply and communication interface for the entire I/O system. This designation suggests an I/O module that can be mounted on the EPM-S110 base unit.

EPM-S110 Module:

• Power supply for I/O modules
• Communication interface (CANopen)
• Mounting options for I/O modules
• LENZE PLC I/O Module Base EPM-S110 CANopen EPM-S140

EPM-S140 Module:

• Digital inputs (DI): The Sensing on/off states (Like limit switches, push buttons)
• Digital outputs (DO): There are Controlling relays or actuators (example solenoids, valves)
• Analog inputs (AI): To Measuring Like temperature, pressure control systems
• Analog outputs (AO): Most of Controlling analog devices (Like valves, motors)
• The LENZE PLC I/O Module Base EPM-S110 CANopen EPM-S140

Communication Module:

• EPM-S131 – EtherCAT Systems
• EPM-S140 – PROFINET
• EPM-S110 – CANopen
• EPM-S120 – PROFIBUS

Digital I/O Module of lenze:

• EPM-S301 – 4 digital outputs
• EPM-S302 – 8 digital outputs
• EPM-S203 – 4 digital inputs, three-wire conductor
• EPM-S200 – 2 digital inputs
• EPM-S201 – 4 digital inputs
• EPM-S202 – 8 digital inputs
• EPM-S300 – 2 digital outputs
• EPM-S210 – 8 digital inputs, diagnostics
• EPM-S205 – 4 digital inputs, negative switching
• EPM-S206 – 8 digital inputs, negative switching
• EPM-S207 – 2 digital inputs, 2 µs
• EPM-S208 – 4 digital inputs, 2 µs
• EPM-S209 – 8 digital inputs, 0.5 ms
• EPM-S305 – 8 digital outputs, negative switching
• EPM-S306 – 2 digital outputs, 2 A
• EPM-S303 – 2 digital outputs, negative switching
• EPM-S304 – 4 digital outputs, negative switching
• EPM-S204 – 2 digital inputs, negative switching
• EPM-S308 – 2 digital outputs, 230-V relay
• EPM-S309 – 4 digital outputs, 2 A
• EPM-S310 – 2 digital outputs, 2 µs
• EPM-S311 – 4 digital outputs, 2 µs
• EPM-S312 – 8 digital outputs, diagnostics

Analog Input-Output Module of EPM-Lenze:

• • EPM-S401 – 4 analog inputs, 0-10 V DC
  • EPM-S402 – 2 analog inputs, 0/4 to 20 mA
  • EPM-S403 – 4 analog inputs, 0/4 to 20 mA
  • EPM-S404 – 4 analog inputs, resistor
  • EPM-S405 – 2 analog inputs, thermocouple
  • EPM-S400 – 2, analog inputs, 0 … 10 V DC
  • EPM-S413 – 4 analog inputs, 0/4 … 20 mA, 16 bits
  • EPM-S414 – 4 analog inputs, -10 … 10 V DC
  • EPM-S415 – 2 analog inputs, thermal
  • EPM-S416 – 3 phases 230/400 V, 5 A
  • EPM-S406 – 2 analog inputs, -10 … 10 V DC
  • EPM-S408 – 2 analog inputs, 0/4 … 20 mA
  • EPM-S409 – 2 analog inputs, 0/4 … 20 mA, isolated
  • EPM-S410 – 2 analog inputs, 0/4 … 20 mA, sensor
  • EPM-S411 – 1 analog input, strain gauge
  • EPM-S412 – 4 analog inputs, 0 … 10 V DC, 16 bits
  • EPM-S500 – 2 analog outputs, 0-10 V DC
  • EPM-S501 – 4 analog outputs, 0-10 V DC
  • EPM-S502 – 2 analog outputs, 0/4-20 mA
  • EPM-S503 – 4 analog outputs, 0/4 to 20 mA
  • EPM-S504 – 2 analog outputs, 0/4 to 20 mA, 16 bits
  • EPM-S505 – 4 analog outputs, -10 to 10 V DC

Other Supply module of EPM Series

• • EPM-S604 – SSI interface
  • EPM-S606 – frequency measurement
  • EPM-S620 – PWM output
  • EPM-S640 – RS232
  • EPM-S650 – RS422/485
  • EPM-S600 – 1-fold counter 24 V / 1 DO
  • EPM-S601 – 2-fold counter 24 V
  • EPM-S602 – 1-fold counter 5 V
  • EPM-S603 – 2-fold counter 24 V
  • EPM-S700 – main supply (bus coupler)
  • EPM-S701 – I/O supply
  • EPM-S702 – I/O and electronics supply
