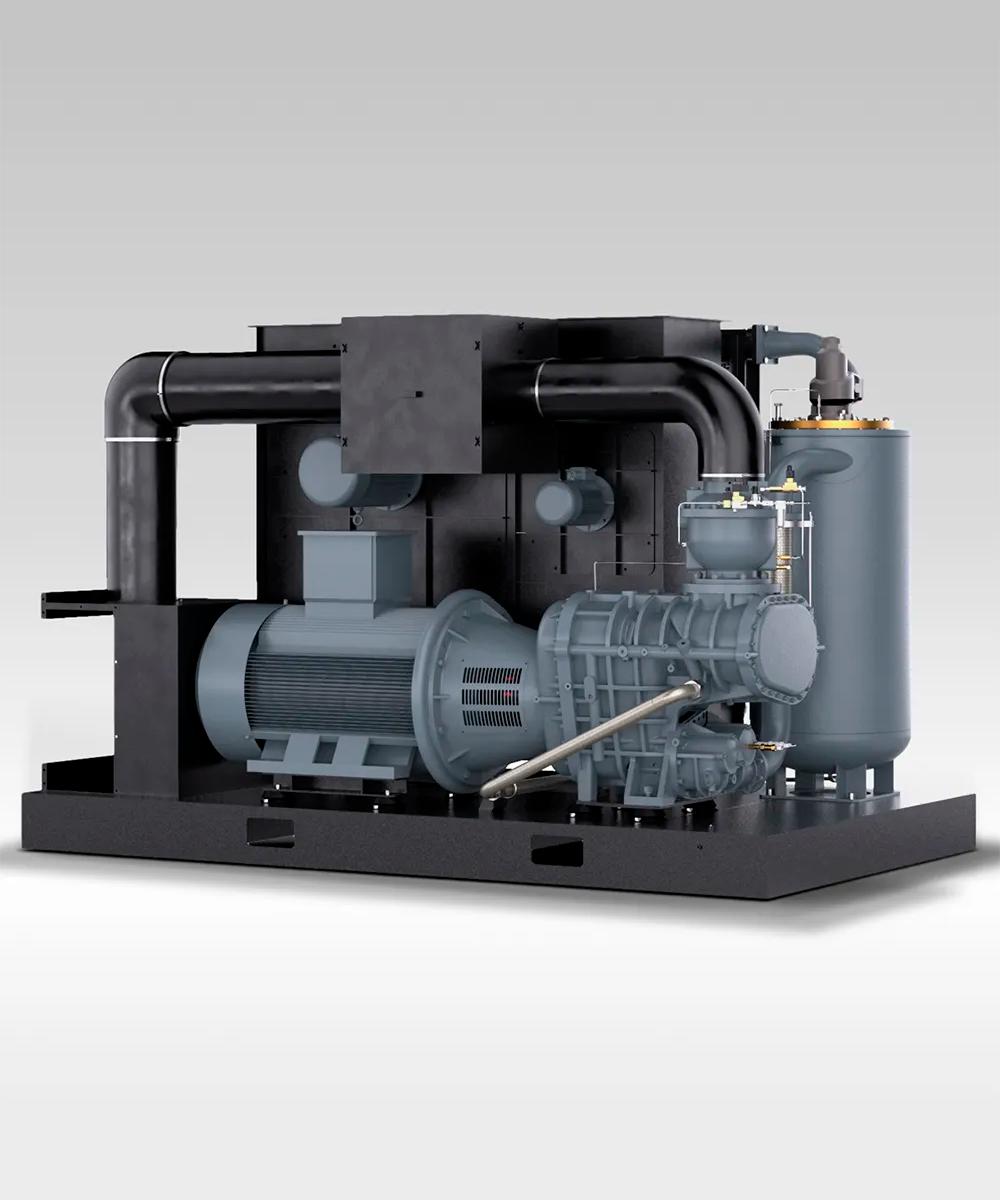

There is a growing demand for reliable, energy-efficient compressed air. Whether you work in the pharmaceutical industry or build ships, you can benefit from a two-stage rotary air compressor. Our KRSP2 series compressors are designed with efficiency, reliability, and optimization in mind.A two-stage rotary screw air compressor contains two sets of gear-driven airends to maximize energy efficiency and increase reliability. The KRSP2 air compressor features efficient operation at nearly any level of hor sepower, including those not normally available for a two-stage screw compressor. With two-stage compressor horsepower options as low as 30 HP, we are the only manufacturer with operation this option below 125 HP. Our 30-100 HP, inline, two-stage design offers leading efficiency at a competitive price point.
30-600 HP
· 131-3,498 CFM
· Lifetime airend warranty
· Fixed- and variable-speed options.
| MODEL | POWER | FLOW (CFM / M3 / min) | SOUND | WEIGHT | DIMENSIONS (LxWxH) | ||||||||||
| HP | kW | 100 psi | 7 bar | 125 psi | 8.6 bar | 150 psi | 10 bar | 175 psi | 12bar | dBA | lbs | kgs | in | mm | |
| KRSP2-125 | 125 | 90 | 707 | 20.02 | 667 | 18.89 | 553 | 15.66 | 510 | 14.44 | 72 | 7920 | 3596 | 107x64x68 | 2718x1626x1727 |
| KRSP2-150 | 150 | 110 | 864 | 24.74 | 772 | 21.86 | 705 | 19.96 | 665 | 18.83 | 73 | 10340 | 4694 | 127x77x82 | 3226x1956x2083 |
| KRSP2-200 | 200 | 150 | 1178 | 33.36 | 1050 | 29.73 | 921 | 26.08 | 855 | 24.21 | 76 | 10384 | 4714 | 127x77x82 | 3226x1956x2083 |
| KRSP2-250 | 250 | 190 | 1446 | 40.95 | 1339 | 37.92 | 1167 | 33.05 | 1098 | 31.09 | 77 | 13090 | 5943 | 140x77x92 | 3556x1956x2337 |
| KRSP2-300 | 300 | 220 | 1738 | 49.22 | 1598 | 45.25 | 1490 | 42.19 | 1318 | 37.32 | 78 | 13156 | 5973 | 140x77x92 | 3556x1956x2337 |
| KRSP2-350 | 350 | 250 | 2092 | 59.24 | 1964 | 55.62 | 1723 | 48.79 | 1579 | 44.71 | 80 | 18810 | 8540 | 148x90x94 | 3759x2286x2388 |
| KRSP2-400 | 400 | 300 | 2432 | 68.87 | 2179 | 61.70 | 2039 | 57.74 | 1844 | 52.22 | 82 | 19470 | 8839 | 162x93x93 | 4115x2362x2362 |
| KRSP2-450 | 450 | 335 | 2697 | 76.37 | 2457 | 69.58 | 2158 | 61.11 | 2051 | 58.08 | 82 | 19790 | 8985 | 162x93x93 | 4115x2362x2362 |
| KRSP2-500 | 500 | 375 | 2916 | 82.57 | 2672 | 75.66 | 2564 | 72.61 | 2394 | 67.79 | 82 | 21054 | 9559 | 162x93x103 | 4115x2362x2616 |
| KRSP2-600 | 600 | 450 | 3498 | 99.05 | 3200 | 90.62 | 2988 | 84.61 | 2757 | 78.07 | 84 | 21998 | 9987 | 162x93x103 | 4115x2362x2616 |
