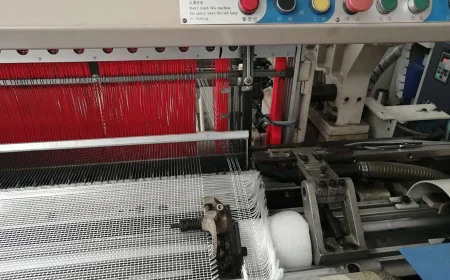

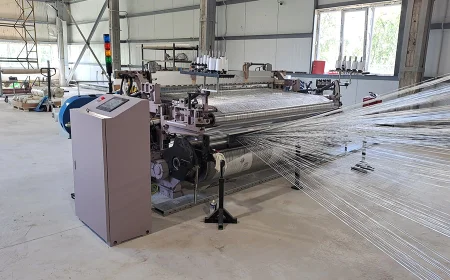

High Speed Flexible Rapier Glass Fiber Loom TD588B
Inhouse product
Product details
HIGH SPEED: The use of narrow rapier tape weft insertion technology can increase the weaving speed, and reduce the rate of warp break, and effectively reduce the cost.
HIGH EFFICIENCY: Using a dedicated high-power servo motor to drive the space linkrod to control the precise positioning of steel reed, realize the special long and short beating up of the towel loom, and with its electrical control device, can realize any switching of 3-7 weft.
The control action is accurate and sensitive. It can realize networked group control and terminal monitoring.
ENERGY SAVING: The Up-down Let off gearbox is inlaid in small wallboard, simple and neat, easy to install, cancel worm and gear, reduce wear and tear, Oil bath lubrication, more durable.
Main technical parameters
Model | TD-V8M |
Reed width (cm) | 230,260,290,320,340,360 |
Rotation Speed(RPM) | Design speed 700rpm, economic speed is 400-500rpm |
Yarn Count | 16s,21s,21s/2,32s,32s/2 |
Shedding | Electronic dobby, (with 20 levers at most)or Electronic Jacquard head |
Take-up | Servo electronic take-up |
Weft Selection | 6 colors |
Diameter of Warp Beam | 800mm or 1000mm ground beam 1000mm or 1100mm pile beam |
Selvage formation | Electronic leno or driven by Jacquard head |
