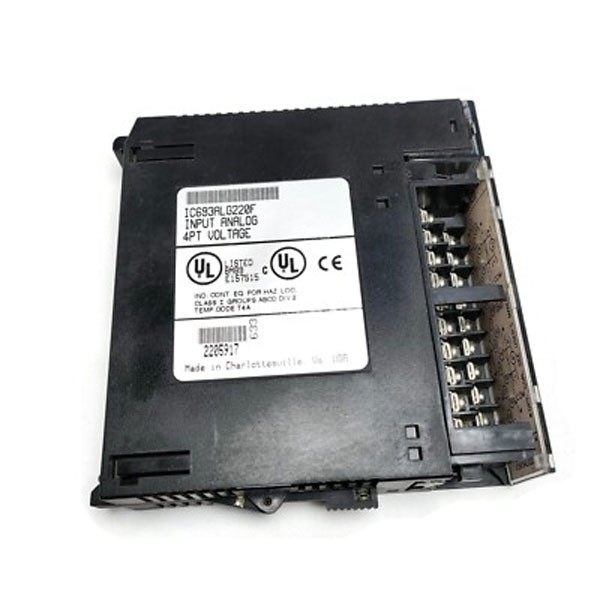

GE-FANUC IC693ALG220F Analog Input Module 4PT Voltage. This Programmable Logic Controller conveys four info channels, each ready to switch a simple info signal over completely to a computerized signal on a case-by-case basis by the client. The module can change over inputs in the scope of – 10 to +10 volts. Change speed for each channel is 1 ms, accordingly giving an update pace of 4 ms for any channel. The changed-over signal goal is 12 pieces parallel. Client information in the %AI registers is in 16-bit 2’s supplement design.

GE-FANUC IC693ALG220F Analog Input Module Details

The shunt resistor permits a – 40 to +40 mA current information range. It is significant, be that as it may, for the client to screen input current to stay away from self-warming of the information resistor. If not, current precision could be adversely impacted. The essential power hotspot for the IC693ALG220 comes from the secluded +24 VDC power provided by means of the PLC power supply. Voltage is sent through an inverter/controller to yield working voltages for the module. The IC693ALG220 utilizes 27 mA from the +5 VDC result of the PLC power supply. Other brand’s Digital or Analog I/O modules are also available.

• Ge Fanuc ic693alg220f input analog module 4pt voltage
• ic693alg220f
• input analog
• 4pt voltage
• class I div 2 groups abcd
• temp code t4a
• 4605669 918
• -10 to +10 vdc—
• 2µa/pt.
