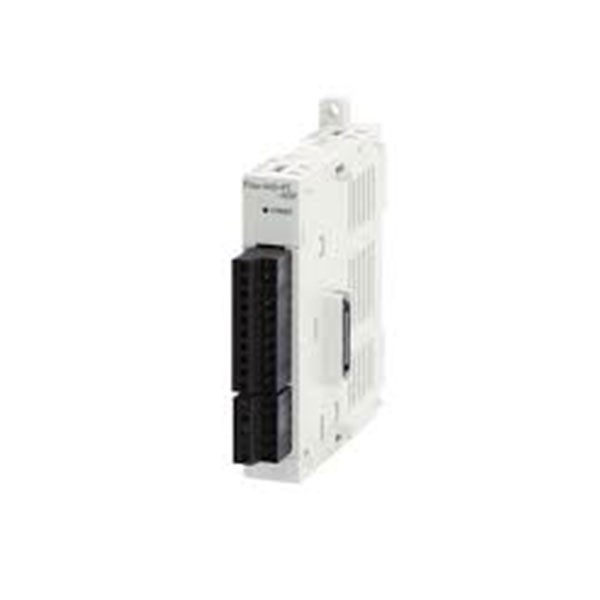

FX3U-4AD-PT-ADP Mitsubishi PLC I/O Module

The FX3U-4AD-PT-ADP is an analog input module from Mitsubishi Electric designed for use with their FX3U series PLCs (Programmable Logic Controllers). This module specifically handles analog inputs from PT100 and PT1000 temperature sensors, allowing the PLC to process temperature data.

Key Specifications and Features of the FX3U-4AD-PT-ADP

General Information

• Manufacturer: Mitsubishi Electric
• Series: FX3U
• Model Number: FX3U-4AD-PT-ADP
• Type: Analog Input Module
• Application: Temperature measurement using PT100 and PT1000 sensors

Technical Specifications

• Number of Channels: 4 analog input channels
• Sensor Types:
  • PT100 (platinum resistance thermometer)
  • PT1000 (platinum resistance thermometer)
• Measurement Range:
  • PT100: -100°C to +600°C
  • PT1000: -100°C to +600°C
• Resolution: 0.2°C
• Conversion Speed: Approximately 500 ms per channel
• Input Type: RTD (Resistance Temperature Detector)
• Temperature Coefficient: ±0.1%/°C
• Accuracy: ±1% full scale
• Connection: Detachable terminal block for easy sensor wiring

Features

• High Accuracy and Resolution: Provides precise temperature measurement with a high resolution of 0.2°C.
• Multiple Sensor Support: Supports both PT100 and PT1000 sensors, making it versatile for various temperature sensing applications.
• Compact Design: Designed to be compact and easy to integrate with FX3U series PLCs without taking up significant space in the control panel.
• Easy Configuration: Simple to configure and integrate into the PLC system using Mitsubishi’s programming software.
• Fast Response Time: With a conversion speed of approximately 500 ms per channel, it allows for timely temperature monitoring and control.
• Error Detection: Includes diagnostic functions to detect sensor disconnections and out-of-range values, ensuring reliable operation.
