FB1268 CARDING MACHINE
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
ASK PRICE
/PCS
Share:
Top Selling Products
Product details
This machine is a combination of roller carding and flat carding, used for opening, mixing, carding and impuritremoval of spinnable raw materials of different colors, lt combs the curly fibers into a generally straight singlefiber state, bundles them into cotton
Main technical parameters
| Working Width(Width of cylinder) | 1020 mm | 1280 mm |
| Suitable fiber lengths and varieties | (Pure cotton,chemical fiber and other spinnable raw materials) |
| Cotton feeding weight | 400-1300 g/m |
| Sliver weight | 3-7 g/m | 3.5-10 g/m |
| Max speed | (Speed of can coiler lump roll) |
| Max output | 134 kg/h | 190 kg/h |
| Form of matched can coiler | Rotary or linear automatic can changing |
| Coiler can specification | φ600*900 mm;φ1000*1200 mm |
| Continuous dust extraction capacity | 4000 m3/h |
| Outlet static pressure | -850至-1000(pa) |
| Total installed power | 24.64 kw |
| Weight of machine | 约11000 kg |
| Overall size(L*W*H) | 11000*2800*3710 mm |
There have been no reviews for this product yet.
Related products
ASK PRICE

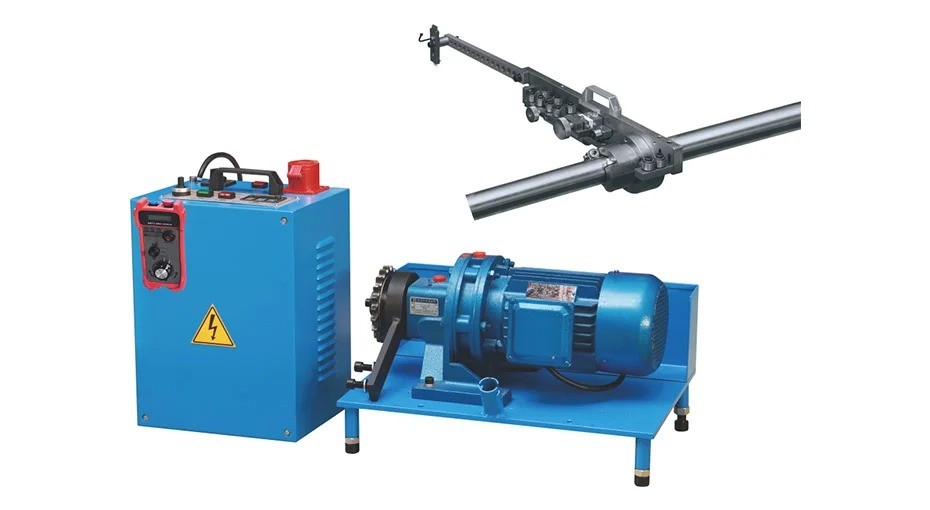

Metallic Wire Mounting Machine TDM-AV
ASK PRICE

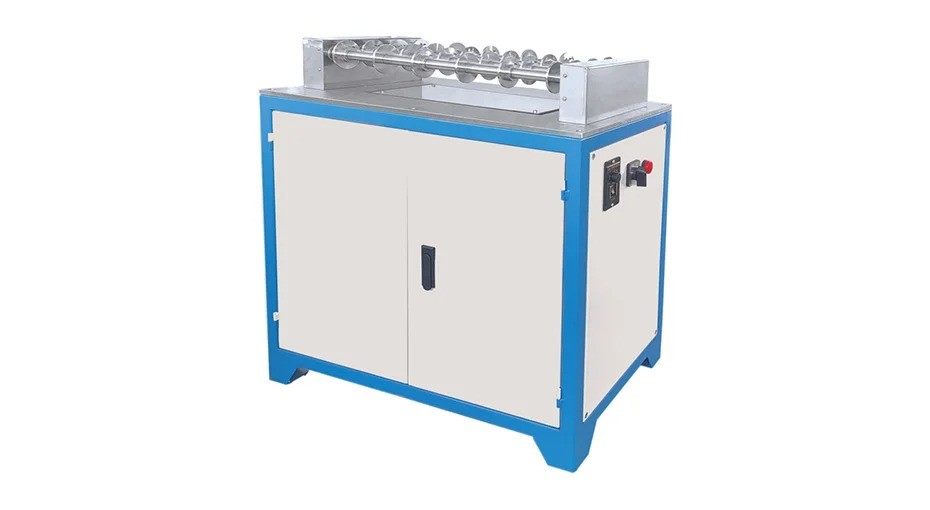

Roller brush coating machine TDM-BT
ASK PRICE

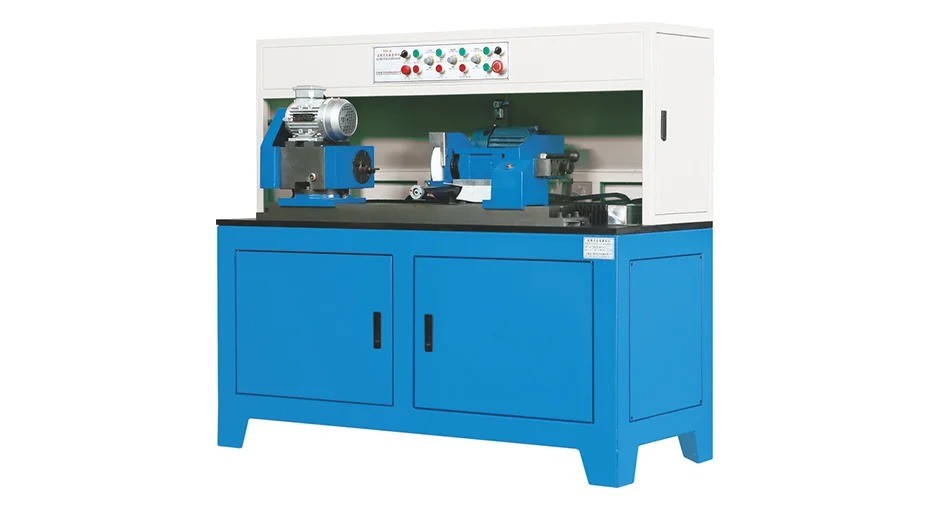

Metallic Wire Weld Device TDM-BV
ASK PRICE

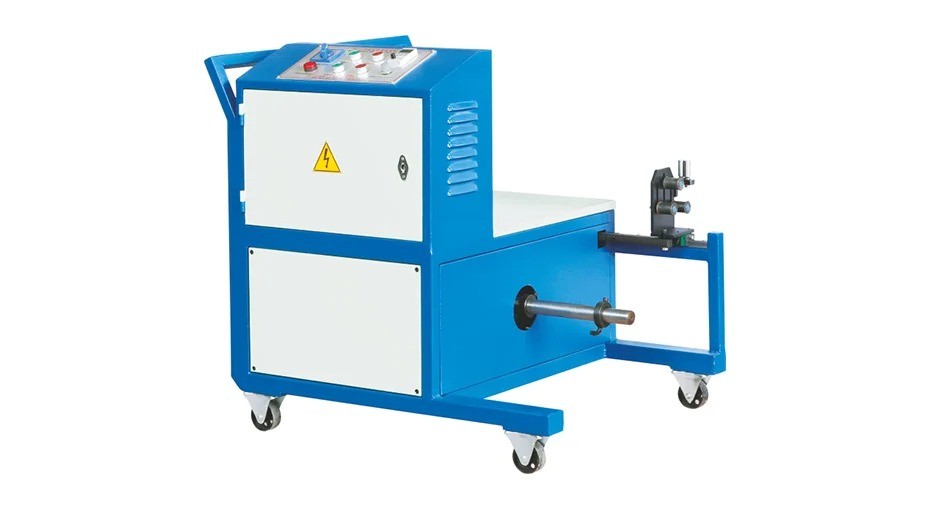

Metallic Wire Unreel Device TDM-CV
ASK PRICE

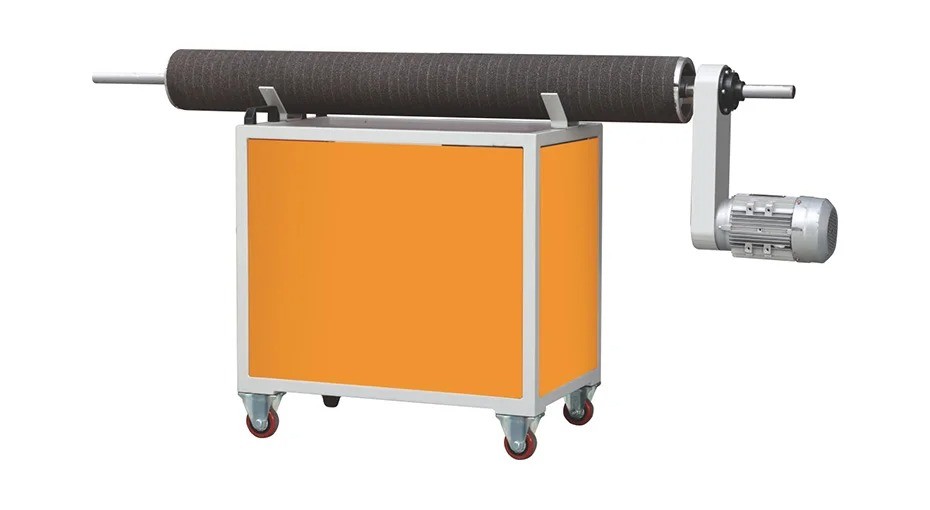

On machine grinding cover plate TDM-JS
