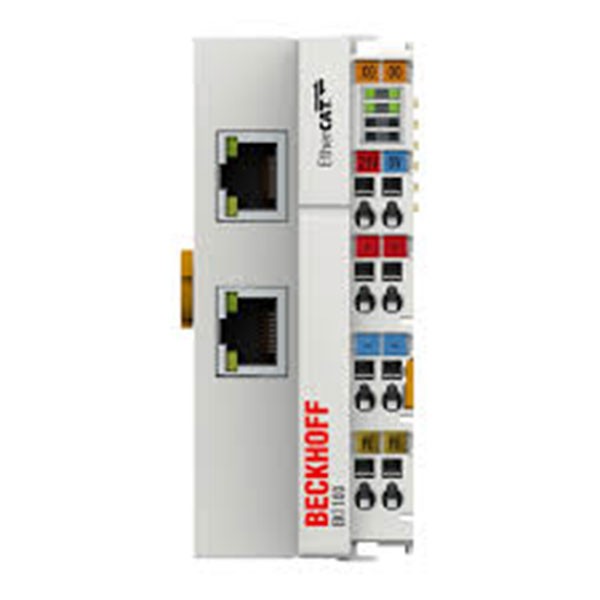

EK1100 and EK1101 EtherCAT Coupler Beckhoff

The Beckhoff EK1100/EK1101 EtherCAT Coupler is the link between the EtherCAT protocol at the Fieldbus level and the EtherCAT Terminals. There is a coupler that converts the passing telegrams from Ethernet 100BASE-TX to the E-bus signal representation.

The Beckhoff Automation EK1100 is an EtherCAT Coupler module used in industrial automation applications. It serves as an interface between EtherCAT I/O modules and the EtherCAT fieldbus. The EK1100 allows the connection of EtherCAT I/O terminals to an EtherCAT network, enabling communication between a PLC (Programmable Logic Controller)

Function of EK1100:

• Connects an EtherCAT network (uses Ethernet cabling) to EtherCAT Terminals (distributed I/O devices).
• Provides power and communication for the connected EtherCAT Terminals.

Technical Specifications:

• Communication Protocol: EtherCAT (100 Mbit/s)
• Connection Technology: 2 x RJ45 sockets, EtherCAT network, additional EtherCAT devices
• Network Topology: Supports line, star, and tree topologies for flexible network layouts.
• Maximum Cable Length: 100 meters
• Power Supply: Requires 24 VDC power supply

The Software of EK1100 itself doesn’t require specific software, the EtherCAT Terminals connected to it might require configuration software depending on their functionalities. Ensure your power supply can handle the combined current requirements of the coupler and all connected EtherCAT Terminals. The Beckhoff EK1100 EtherCAT Coupler module in industrial automation applications. It’s acts as the bridge between the EtherCAT network and EtherCAT Terminals
