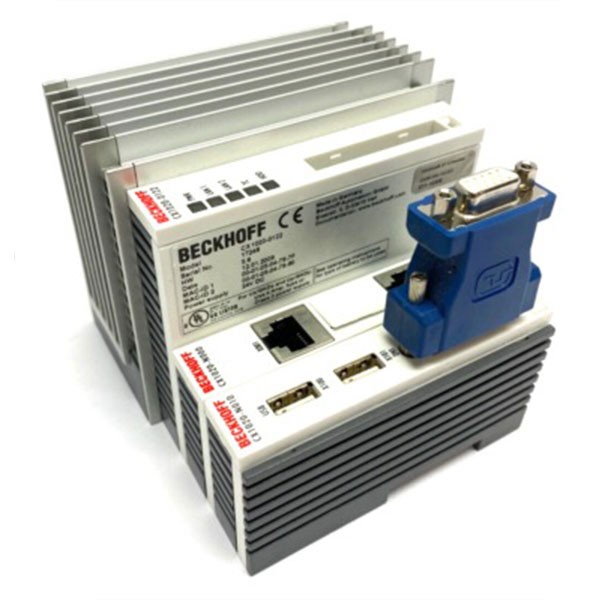

CX1020-0122 Beckhoff CPU with Display Module for KHS Machine

Beckhoff CX1020-N031 which is RS485 communication module, Beckhoff CX1020-N010 is USB and DVI-Display Port to Monitor visualization. Which are beckhoff module is CX1020-N000 EtherCat communication protocal, There are CPU embeded systems CX1020-0122. The Beckhoff CX1020-0122 is a compact Embedded PC, specifically a CPU unit, often used in industrial automation.

Beckhoff CX1020-0122:

• CX1020: This is the model designation. It’s a series of Embedded PCs known for their compact size, modularity, and industrial sector
• Embedded PC: This signifies that the device is a PC designed for integration into industrial machinery, rather than a general-purpose desktop computer.
• Intel® Celeron® M ULV, 1 GHz clock frequency
• 256 MB DDR RAM (expandable ex factory to 1 GB)
• Windows Embedded CE 6, Windows Embedded Standard 2009

Support for KHS Machine:

• Display Module: The CX1020 is paired with a display unit, likely a touchscreen HMI (Human-Machine Interface), for operator interaction.
• KHS Machine: The CX1020 is part of a control system for a KHS machine, such as a filling line, packaging machine, or labeling system.

Likely Use in KHS Machinery:

• Machine Control: The CX1020 would function as the primary controller, executing the machine’s control logic.
• HMI Interface: CX1020 would communicate with other control systems and devices over industrial networks. Beckhoff’s EtherCAT technology provides high-speed, deterministic communication, essential for precise control in packaging and filling machine applications

In Summary:

The Beckhoff CX1020-0122 is a powerful industrial PC used to control and monitor KHS machinery, likely with a display module for operator interaction.
