CP1L M30DT1 D OMRON Programmable Controller in Ready stock price Bangladesh. PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x PNP outputs 0.3 A, 10K steps program +32K words data memory.

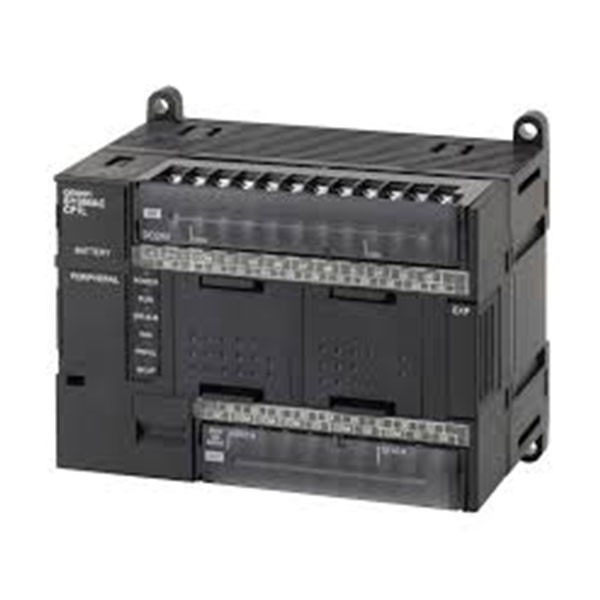

The Omron CP1L-M30DT1-D is a model of programmable logic controller (PLC) from Omron’s CP1L series. This series is known for its compact design, versatility, and ease of use, making it suitable for a wide range of automation applications. Here are the key details and specifications for the CP1L-M30DT1-D:

Key Features:

1. Integrated I/O: The CP1L-M30DT1-D comes with built-in I/O, which includes both digital inputs and outputs.
2. Compact Design: Its compact size makes it ideal for applications where space is limited.
3. Versatile Communication: Supports multiple communication options including USB, RS-232, and RS-485 for easy integration and data exchange.
4. High-Speed Counters and Pulse Outputs: Equipped with high-speed counters and pulse outputs for precise control tasks.
5. Expandable: Allows for expansion with additional I/O modules if needed.

Specifications:

• Model: CP1L-M30DT1-D
• Power Supply: 24V DC
• Digital Inputs (DI): 18
  • Input Voltage: 24V DC
  • Input Type: Sink/Source
• Digital Outputs (DO): 12 Transistor Outputs (Source type)
  • Output Voltage: 24V DC
  • Output Current: 0.3A per point (max)
• High-Speed Counters: 4 inputs (single-phase 60 kHz, two-phase 30 kHz)
• Pulse Outputs: 2 outputs (100 kHz)
• Communication Ports:
  • 1 USB port
  • 1 RS-232C port
  • Optional RS-485 port with expansion
• Memory Capacity: 10k steps program capacity
• Expansion Capability: Supports up to 3 CP1W/CPM1A expansion I/O modules
• Programming Software: Omron CX-Programmer

Applications:

• Industrial Automation: Suitable for controlling machinery, production lines, and other industrial equipment.
• Building Automation: Can be used for HVAC control, lighting systems, and other building management applications.
• Process Control: Ideal for process control tasks in various industries such as food and beverage, pharmaceuticals, and chemicals.

Installation and Configuration:

1. Mounting:
   • The CP1L-M30DT1-D can be mounted on a DIN rail or directly on a panel.
   • Ensure it is securely mounted to avoid vibration and movement.
2. Wiring:
   • Connect the 24V DC power supply to the designated power input terminals.
   • Wire the digital inputs and outputs according to your application needs.
   • Follow the wiring diagram provided in the user manual for correct connections.
3. Connecting Communication Ports:
   • Use the USB port for programming and firmware updates.
   • Connect RS-232 or RS-485 devices as required by your application.
4. Programming:
   • Use Omron’s CX-Programmer software to develop and download your control program to the PLC.
   • The software offers a user-friendly interface for ladder logic programming.
5. Testing and Commissioning:
   • After programming and wiring, test the PLC operation to ensure all inputs and outputs function correctly.
   • Use CX-Programmer for monitoring and debugging the PLC program.

Advantages:

• Compact and Cost-Effective: Offers a high level of functionality in a small form factor, making it a cost-effective solution for many automation tasks.
• Flexible Integration: Multiple communication ports and expandability options make it easy to integrate into existing systems.
• Reliable Performance: Known for reliable operation in industrial environments.

This manual provides comprehensive guidance on installing, wiring, and configuring the CP1L-M30DT1-D PLC for your specific application.
