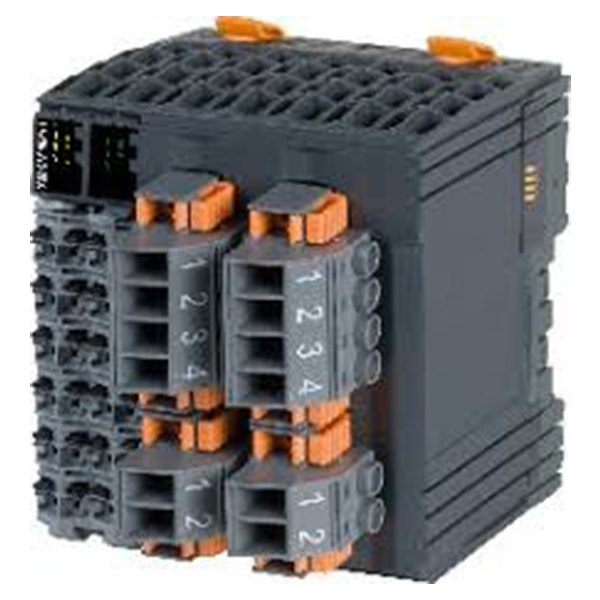

The B&R Automation X20CM0985 System X20 Energy Measurement and Synchronization Module for 120 to 480 VAC. The B&R Automation X20CM0985 is a highly capable energy measurement and synchronization module for the B&R X20 I/O system. It is designed for demanding applications where precise measurement of electrical parameters is required.

Technical Features:

• Function: Multi-measurement transducer / synchronization module.
• Voltage Inputs: 8 analog voltage inputs configurable for either 120 V AC or 480 V AC.
• Current Inputs: 3 analog current inputs that support both 1 A and 5 A current transformers (CTs).
• Measurements:
  • Effective, reactive, and apparent power.
  • Line-to-line and phase voltages.
  • Phase currents.
  • Mains frequency and power factor.
• Integrated Features:
  • Nonvolatile memory for storing peak values and energy meters.
  • Intelligent mains synchronization unit.
  • Digital outputs (5 digital and 1 relay) for control and signaling.
• System Compatibility: Part of the modular B&R X20 I/O system, it requires a compatible CPU or bus controller to function.

Availability and Summery:

The B&R Automation X20 system is a current and widely used modular I/O platform. It is a standard component within this family and is supported by B&R and its partners. The B&R has a presence in the Bangladeshi industrial automation market sourced through specialized importers as commonly stocked as brands like Siemens or Omron.
