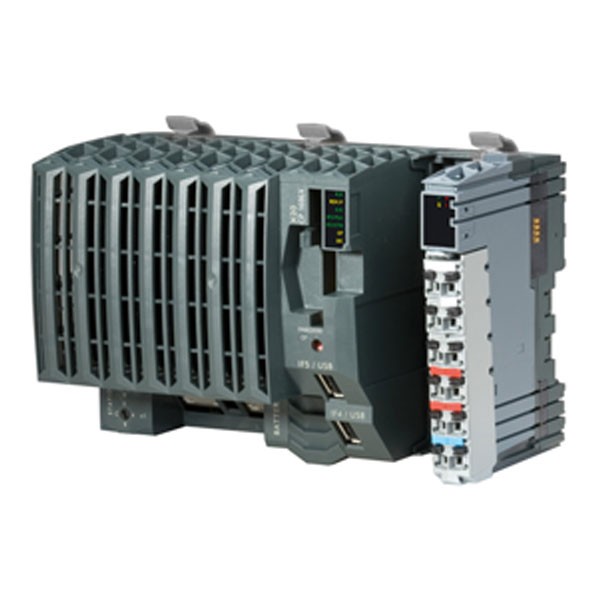

B&R Automation X20AI2622 module 2 inputs Analog

The B&R X20AI2622 module is an analog input module with two inputs and a 13-bit digital converter resolution. Another model has been similar of X20 analog input module, 4 inputs, ±10 V or 0 to 20 mA / 4 to 20 mA, 13-bit converter resolution, configurable input filter

Key Features of B&R Automation X20AI2622:

1. Inputs: 2 analog inputs
2. Resolution: 13-bit digital converter resolution
3. Input Type: Can handle various input signal types such as voltage and current.
4. Conversion Time: Fast conversion time for quick signal processing.
5. Connection: Part of the B&R X20 system, designed to be used in a modular automation environment.
6. Compact Design: Slim form factor for space-saving installations.
7. B&R Automation : B&R X20AI2622 module 2 inputs Analog with 13-bit digital converter resolution

Technical Specifications:

• Analog Inputs: 2
• Resolution: 13-bit
• Input Voltage Range: Typically 0-10V or 0-20mA, but confirm exact ranges in the datasheet.
• Accuracy: High accuracy for precise measurements.
• Isolation: Galvanic isolation between channels and system.
• Power Supply: Typically powered through the backplane of the X20 system.
• Mounting: DIN rail mounting as part of the X20 series modules.

Typical Use Cases:

• Industrial Automation: Monitoring and controlling analog signals from sensors and other devices.
• Process Control: Used in systems that require precise monitoring and control of process variables.
• Data Acquisition: Collecting and digitizing analog signals for further processing.

Installation and Configuration:

• Wiring: Ensure correct wiring according to the module’s pinout and specifications.
• Software Configuration: Use B&R Automation Studio or other compatible software for configuration and integration into the automation system.
• Diagnostics: Built-in diagnostics for troubleshooting and ensuring reliable operation.

For detailed technical information, it is recommended to refer to the official datasheet or user manual of the B&R X20AI2622 module. This will provide comprehensive details on specifications, wiring diagrams, and configuration instructions.
