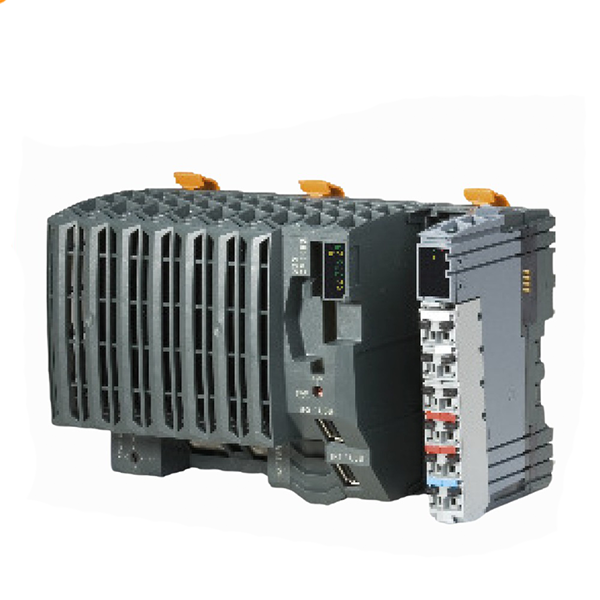

B&R PLC CPU X20CP1381 Controller

The B&R X20CP1381 is a Compact I/O Controller from B&R Industrial Automation’s highly modular and flexible X20 System series of PLCs. It’s designed for demanding industrial automation applications where a powerful controller with integrated I/O and various communication interfaces.

Features of the B&R X20CP1381:

• Processor: Intel x86 200 MHz compatible processor with an integrated I/O processor.
• Memory:
  • RAM: 128 MB DDR3 SDRAM, B&R AUTOMATION PLC CPU X20CP1381 Controller
  • Flash Memory: 1 GB onboard flash drive (eMMC flash for application memory)
  • FRAM (Re-manent Memory): 16 KB for storing non-volatile variables.
• Integrated I/O:
  • Digital Inputs: 14 digital inputs (24 VDC Sink), 2 digital inputs of B&R AUTOMATION PLC CPU X20CP1381 Controller
  • Digital Outputs: 4 digital outputs (24 VDC, 0.5 A, Source/PNP), 4 digital outputs (24 VDC
  • Analog Inputs: 1 analog input (-10..+10Vdc / 0-20mA / 4-20mA; 12-bit) and 1 analog input (RTD type Pt1000
• Communication Interfaces (Integrated):
  • Ethernet: 1 x 10/100Base-T Ethernet port (RJ45).
  • POWERLINK: 1 x POWERLINK interface, supporting both managing and controlled node functionality.
  • CAN bus: 1 x CAN bus interface.
  • USB: 2 x USB 2.0 ports (Type A).
  • RS232: 1 x RS232 serial interface.
• Expansion Slot: 1 slot for modular interface expansion using B&R X20 interface modules, allowing for additional fieldbus connections or specialized communication.
• Software: Programmed using B&R Automation Studio integrated development environment.
• Power Supply: 24 VDC.
